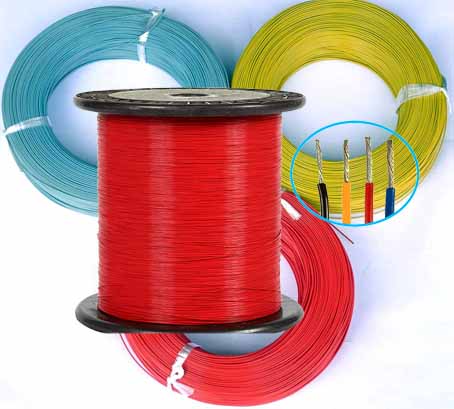

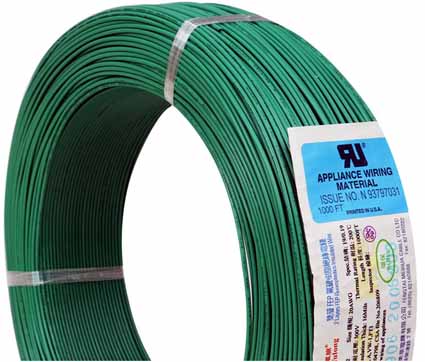

Teflon wire, commonly known as fluorine plastic wire, also known as high temperature wire. It means that the insulation layer of the wire is made of fluoroplastics, which has the special performance of high temperature resistance.

Teflon wire performance
Has excellent corrosion resistance, almost insoluble in any organic solvents, resistant to oil, strong acids, strong alkalis, strong oxidants, etc.; It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent flame resistance, aging resistance and long service life.

Application of Teflon wire
Teflon wires are widely used in the electronics industry, and can be used for temperature compensation wires, low temperature resistant wires, high temperature heating wires, aging resistant wires and flame retardant wires; In the household appliance industry, it can be used for internal wiring of air conditioners, microwave ovens, electronic disinfection cabinets, rice cookers, electronic hot water bottles, electric heaters, electric ovens, electric frying pans, lamps and lanterns.

Teflon wire parameters
Product model: AF200X
Executive standard: Q/IRMV1－2008
Product Features:
1. Rated voltage: 600V
2. Working temperature: -65～+200℃
3. Conductor: solid core or stranded tinned copper wire
4. Insulation: FEP Teflon
5. Color: red/yellow/blue/white/black/yellow-green/brown, etc.

Specification structure of Teflon wire

Nominal cross section （mm）	Conductor structure Number/Wire Diameter （mm）	Insulation thickness （mm）	Average outer diameter （mm）	DC resistance of conductor at 20 ℃ （Ω/km）	Packing/length （m）
0.014	7/0.05	0.15	0.45	1454	500
0.035	7/0.08	0.15	0.60	568	500
0.05	7/0.10	0.15	0.60	356	500
0.08	7/0.12	0.20	0.78	245	500
0.12	7/0.15	0.25	0.95	163	500
0.20	7/0.20	0.25	1.10	90.4	500
0.35	19/0.16	0.25	1.30	53.1	200
0.50	19/0.18	0.25	1.40	40.1	200
0.75	19/0.23	0.25	1.70	24.6	200
1.0	19/0.26	0.25	1.80	20.4	200
1.20	19/0.28	0.30	2.0	16.6	200
1.50	19/0.32	0.30	2.25	12.7	200
2.0	19/0.37	0.30	2.45	10.0	100
2.5	19/0.41	0.40	2.80	7.43	100
4.0	37/0.37	0.40	3.40	4.88	100
6.0	37/0.45	0.50	4.20	3.30	100
8.0	133/0.28	0.5	5.2	2.30	100
10	133/0.32	0.5	5.8	1.82	100
16	133/0.39	0.6	7.0	1.22	100
20	133/0.45	0.6	8.0	0.919	100
25	196/0.40	0.6	8.8	0.795	100
35	494/0.30	0.7	10.4	0.565	100
50	396/0.40	0.8	12.2	0.393	100
70	551/0.40	1.0	14.6	0.277	100
95	760/0.40	1.2	17.2	0.210	100
0.03	1/0.20	0.15	0.50	560	500
0.05	1/0.25	0.18	0.60	386.9	500
0.07	1/0.30	0.2	0.70	245	500
0.12	1/0.40	0.20	0.80	146.9	500
0.20	1/0.50	0.25	1.0	94	500
0.3	1/0.60	0.25	1.10	65.3	200
0.5	1/0.80	0.30	1.40	36.7	200
0.75	1/0.97	0.25	1.48	24.7	200
0.78	1/1.0	0.30	1.60	24.7	200
1	1/1.13	0.30	1.70	18.2	200
1.13	1/1.20	0.30	1.80	16.5	200
2.5	1/1.78	0.40	2.60	7.56	100
