Technical parameters of customized Touch connector

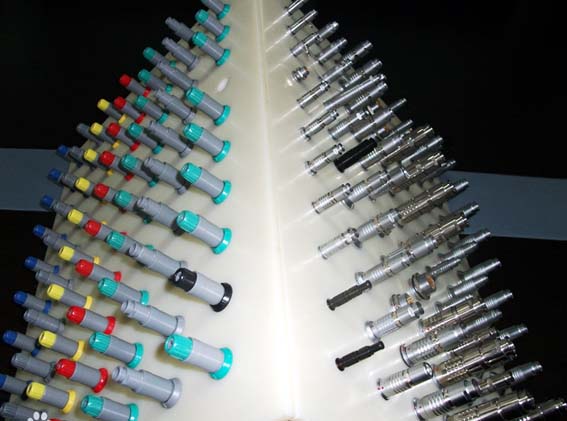

Touch connector is a series of high-end precision circular connectors designed and produced by Dongguan Yaxun Electronics Co., Ltd. It is interchangeable with Swiss LEMO connectors.
Touch connectors are increasingly used in medical, communication, automotive, military, electronic measurement and testing instruments at home and abroad because of their good plug-in performance and beautiful appearance design.
Touch connectors are increasingly used in medical, communication, automotive, military, electronic measurement and testing instruments at home and abroad because of their good plug-in performance and beautiful appearance design.
Features of Touch connector
1), compact structure, small and beautiful;
2), high-density arrangement, multi-core series;
3) All metal, good shielding;
4) Quick connection and separation, easy operation;
5) Self-locking structure, safe and reliable;
6) Jack socket and pin plug.
Touch connector type
According to the connection method: there are welding type and PCB board connection type;
According to the shell material: there are metal connectors and plastic connectors.
Touch connector material
1. Metal Connector
Shell — generally copper alloy, stainless steel in special cases. The surface of copper alloy is plated with chromium, nickel or black chromium.
Insulator-PPS.
Contact body-copper alloy processing, surface gold plating.
2. Plastic connector
Shell — ABS+PC
Insulator — PPS.
Contact body— Copper alloy processing, gold-plated surface.
Touch connector series
There are 8 main series of Touch connectors:
B series-general metal series
K series-waterproof metal series
S series-general metal series
F series-general metal series
C series-general metal series
2E Series-Short Metal Series
P series-plastic series
Pneumatic connector
