Rubber Miniature Electrical Connector Classification

Non-conductive rubber connector
What is rubber electrical connector?

Rubber electrical connectors are a type of connector developed to adapt to miniature electronic components. It is a liquid crystal display for an electronic wristwatch, a high-density integrated circuit electrical connection between the double row leads and the printed wiring board connected to the end of the package.

Rubber electrical connectors can be divided into non-conductive rubber, conductive rubber, and pressure-sensitive conductive rubber.

Classification of rubber electrical connectors
1. A connector using non-conductive rubber

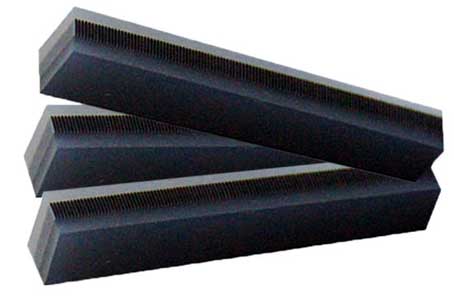

A connector that uses non-conductive rubber-a rubber stick as thin as a pencil lead, and a flexible film with micro-metalized parallel wires wound on the outside. Put these two elastic thin sticks on both sides of the double-row terminal package, put them on the printed circuit board, and press and fix them. Then, the two columns of lead wires of the device are connected with the corresponding lines on the board one by one by the micro-metallized parallel wires used as contact bodies.

Conductive rubber connector
2. Conductive rubber and non-conductive rubber are laminated together
A connector made of conductive rubber and non-conductive rubber laminated together: According to the center distance of the lead wires of the double-row lead-out package of the connector, conductive rubber sheets and non-conductive rubber sheets of corresponding thickness are laminated and bonded to form a multilayer rubber block. Then cut into rubber sticks of the size described in Type 1. It uses conductive rubber layers as contacts. Its usage is the same as Type 1.

3. Conductive rubber connector
Another conductive rubber connector—— Using small conductive rubber buttons (like double mushroom head rivets) as the contact body, the contact bodies are embedded one by one in each through hole on the two long sides of the rectangular plastic frame. When in use, place the dual-row lead-out package device on the rectangular frame, so that the lead wires of the two columns of the device are aligned with the two rows of elastic contacts on the frame; Then install the connector with the device on the printed circuit board; Finally add a gland to fix it. In this way, each lead wire on the device and each printed wire on the board are connected by one conductive rubber button.

Rubber pressure sensitive connector
4. Rubber pressure sensitive connector
The pressure-sensitive rubber connector is shaped like a gasket, about 0.4 mm thick. When the connector is clamped between the device and the printed circuit board, only the slight pressure exerted by the lead-out ends of the screen printing or plating on the substrate and the slight height of the circuit on the board can cause The metal particles in the metal-filled rubber gasket are rearranged. As a result, a conductive path is formed in a direction perpendicular to the connection surface, and insulation is formed between the lead wires of the adjacent devices on the horizontal, left, and right and diagonal lines and the circuit on the board.
The common characteristics of the above-mentioned various rubber connectors are extremely high density, good compliance (not strictly required for dimensional accuracy), air tightness, shock and vibration resistance, and so on.
