The advantages of small, crimping through-hole pcb, ffc, fpc connectors: 0.80mm pitch (.031")
1. The crimping and perforated wire harnesses are produced and processed by fully automatic equipment, which can ensure stable quality even in mass production.
2. Realize wire-to-board W-B connection in a very small space.
3. CJST's professional piercing crimping technology can ensure stable quality even when using extremely thin wires. (The smallest crimpable wire AWG#36)
4. The shortest wire harness length can be crimped 30mm, and the longest wire harness length is 300mm.
Connectors that can replace JST SUH

0.80mm pitch, plastic shell, pcb, ffc, fpc type connectors
product category	0800 series	Rows	1
Product spacing	0.80mm	Number of poles	2-24
product material	PA66，UL94V-0	Rated current	0.5A AC/DC
Product color	white	Rated voltage	30V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
Metal Material	phosphor bronze	Withstand voltage	200V AC/minute
plating	tin plating/gold plating	temperature range	-25℃ - +85℃
Wire diameter OD	0.39mm(Max)	jst sur connector
Product Image

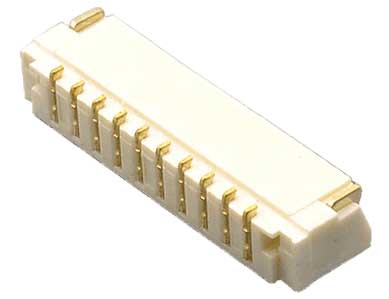

0.80mm pitch, 90°, SMT pin base connector
product category	0800 series	Rows	1
Product spacing	0.80mm	Number of poles	2-24
product material	LCP, UL94V-0	Rated current	0.5A AC/DC
Product color	white	Rated voltage	30V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
PIN needle material	phosphor bronze	Withstand voltage	200V AC/minute
PIN needle electroplating	tin plating/gold plating	temperature range	-25℃ - +85℃
Wire diameter OD	0.39mm(Max)	kls1 xl1 connector
Product Image

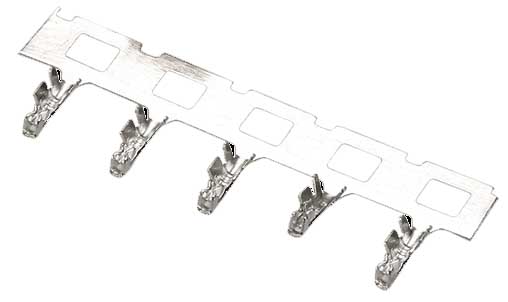

Terminal-0.80mm pitch, crimp terminal
product category	0800 series	Cable size	(AWG)#32-36
Product spacing	0.80mm	Wire diameter OD	0.60mm(Max)
Product material	phosphor bronze	Rated current	0.5A AC/DC
Product electroplating	tin plating/gold plating	Rated voltage	30V AC/DC
Contact resistance	20mΩMax	Withstand voltage	200V AC/minute
Temperature range	-25℃-+85℃	Insulation resistance: 100MΩMin
Product Image

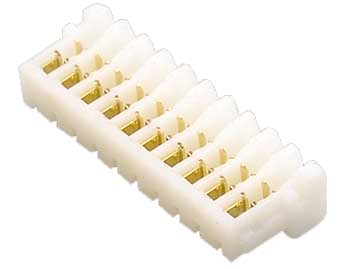

0.80mm pitch, wire-to-board connector
product category	0800 series	Rows	1
Product spacing	0.80mm	Number of poles	2-24
product material	PA46, UL94V-0	Rated current	0.5A AC/DC
Product color	natural color	Rated voltage	30V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
Withstand voltage	200V AC/minute	temperature range	-25℃ - +85℃
Product Image
