Design Lighting Connectors and Wiring Harnesses

From outdoor lighting to commercial refrigeration, lighting innovations continue to take advantage of a wide range of technological advancements. Whether creating a new system or enhancing an existing circuit design, YAXUN is the lighting solution provider you need. Provide you with electromechanical and electronic components that seamlessly integrate control and transmit power and data among multiple building systems.

Now, seemingly inconspicuous connecting parts are often related to whether the entire lighting system can finally meet the corresponding design requirements of reliability, waterproof level, and long life. Connectors have become one of the key components of solid-state lighting systems. Solid-state lighting has the characteristics of energy saving, environmental protection, long life, maintenance-free, and easy control.

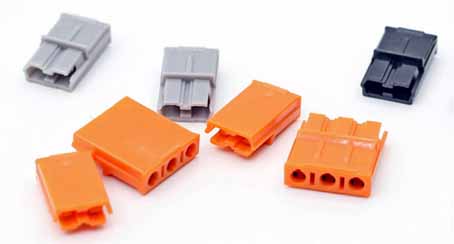

Poke-In connector The BUCHANAN WireMate plug-in connector series is a 4.0 mm pitch modular connector for wire-to-board connections. The plug-in performance facilitates easy and fast installation, and its modular design enables flexible solutions.
Releasable Poke-In, SMT, 2 Position
Connector, SMT-IDC, 2 POS, 20 AWG
Poke In SMT, 2 Position Connect
Micro poke in assembly
Connector, SMT-IDC PASS THRU, 1 POS, 18
Lighting Connectors and Wiring Harnesses
Plug and socket connectors Assembly, Right Angle SMT Header, 4-Posi
Assembly, Right Angle TH Header, 2-Posit
Assembly, Right Angle TH Header, 4-Posit
Assembly, Right Angle SMT Header, 3-Posi
Assembly, Plug, 3-Position
NECTOR S DISTRIBUTOR ASSY 6 POS YELLOW
Assembly, Free Hanging Plug, SLC, 2 pos

Plug and socket connector accessories MICRO QUADLOK SYSTEM PIN CONTACT
MICRO QUADLOK SYSTEM SOCKET CONTACT
MICRO QUADLOK SYSTEM PIN CONTA
MICRO QUADLOK SYSTEM SOCKET CONTACT
NECTOR S BUS BAR ASSY LV-2 YELLOW
NECTOR S COVER FOR DISTRIBUTOR 6, 7 POS

Road lighting controls, connectors, bases and accessories Street lighting products provide reliable protection for controllers used in street and area outdoor lighting. LUMAWISE Endurance N products comply with ANSI C136 standards. The socket connector is integrated in the luminaire, which is used to join the base which is the basis of lighting control. The plug-in socket and base provide a sealed interconnection solution between the lighting device and the control module. This series of products provides a UV-resistant high-impact rated cover as an accessory to the base, which can effectively seal and protect the enclosed lighting control, maintain street lamp dimming and other functions, even under severe conditions. LUMAWISE Endurance S products are used in low-voltage street lighting applications where sensors can be used. Endurance S was originally provided for ZHAGA specification 18 standard DALI controlled lighting devices. The product portfolio includes socket connectors, bases and upper covers, and has been expanded to a dual-node architecture, 0-10 volt dimming Z10 and other applications. LUMAWISE ALR 7000 & 8000 series light control provides practical, high-performance, multi-voltage control for demanding road, street and area lighting applications. The 7000 series light controller is designed to exceed the 20,000 on/off operation cycles specified in the ANSI C136.10 standard. The 8000 series optical controllers significantly reduce electrolytic capacitors and achieve long-life control.

Comply with ANSI C136 standard
     Conforms to Zhaga Specification 18 Standard
     IP65 and IP66 sealing (CB certification)
     IK08 / IK09 grade high impact resistance
     Outdoor use reaches UL UV-f1 level

Advantages and advantages
     Compliance with industry standards
     Energy management through on/off and dimming functions
     Provide a sealed and reliable low-torque plug connection between the control base and the socket
     Through anti-ultraviolet materials and effective sealing and ventilation, the service life in harsh outdoor environments is prolonged.

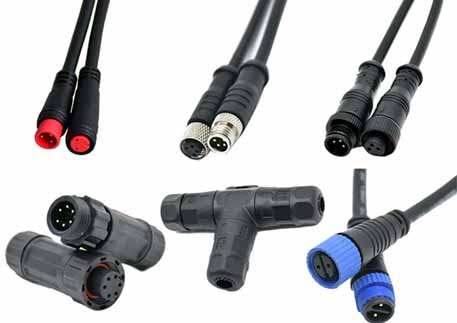

Ballast connector Miniature series plug-IP67 level connector, can adapt to harsh environment. A space-saving solution with two to three position structures. Press and release the spring latch to ensure that the connector is firmly engaged.

The 2 and 3-pin LIGHT-N-LOK modular latch sockets have plug-in terminations for easy installation. The compact design is suitable for space-constrained applications. Four different colors for easy identification.

The 3-position LIGHT-N-LOK modular latch plug connector adopts a plug-in termination method, which is easy to install. The compact design is suitable for space-constrained applications. Four different colors for easy identification.
ASY, SCRLESS WIRE CONN, VERT, 4P
Ballast connector
Lighting cables and components Cable Assembly Mini CT 4 pos, CT 5 pos, CT 2 pos,
C/A, PLUG, SLIMSEAL SSL CONN, SGL POS
Cable Assembly Mini CT, 80.0MM Length
C/A Nector S Distr to EuroPlug HV-1 Whit
C/A Nector S Plug to Outlet LV-2 SVT Whi
C/A Nector S Outlet to Pigtail LV-2 SVT
