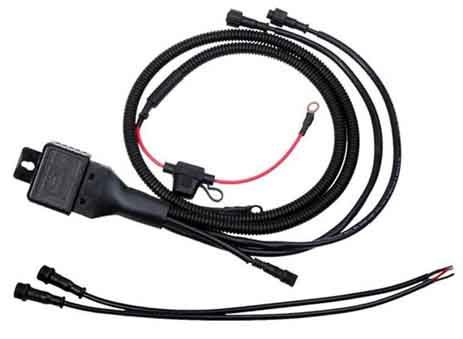

Car rear view mirror wiring harness
Utility model rear-view mirror wiring harness. The wire and the protective cover are fixed by a buckle, and the installation is convenient and the stability is high. And it is easy to replace and check the wires.
In order to achieve the above purpose, the technical solution of the present invention is:
A rearview mirror wiring harness includes more than one connector, and two adjacent connectors are connected by wires. A first protective sleeve made of polytetrafluoroethylene is connected to the outer casing of the wire, and the first protective sleeve is connected to the wire through a buckle; The buckle includes a snap ring, and a first locking protrusion is fixedly installed on the inner side wall of the snap ring at the end of the snap ring with the first protective sleeve. A second locking protrusion is fixedly installed on the inner side wall of the retaining ring at the wire clamping end, and the height of the protrusion of the second locking protrusion is greater than the height of the protrusion of the first locking protrusion.
A protrusion is fixedly installed on the outer side wall of the snap ring.
The connector includes a general connector, a first connector, a second connector, a third connector, a fourth connector, a fifth connector, and a sixth connector.
The general connector is connected to the first connector via a first wire, the general connector is connected to the second connector via a second wire, and the general connector is connected to the third connector via a third wire. The general connector is connected to the fourth connector through a fourth wire, the general connector is connected to the fifth connector through a fifth wire, and the general connector is connected to the sixth connector through a sixth wire.
The first wire, the second wire, the third wire, the fourth wire, the fifth wire and the sixth wire are sheathed with a second protective sleeve; A wire tie is externally attached to the second protective sleeve, and the wire tie includes a wire tie body made of silica gel. One end of the cord body is provided with more than one positioning hole, and the other end of the cord body is equipped with a positioning protrusion used in conjunction with the positioning hole.
