PCB Surface Mount Wiring Harness (Male, Female), 1.30 (.051 "), 1.50 (.059"), 1.80mm (.071 ")
3 pin, 4 pin, 6 pin, 8 pin plug Connector, widely used in electrical, power, speaker, automotive, motor.
1. Compact and low-profile type, vertical mating connector, providing quick and easy plugging.
2. There will be no polarity keys that are in the wrong direction or cannot be mated to prevent mismatching.
3. The open top socket head, snap-in mating, realize quick assembly processing, convenient installation, and save vertical space.

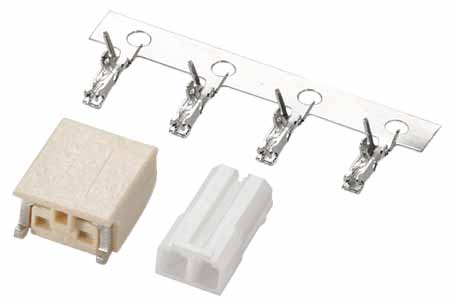

Small high current 1.30mm connector
product category	1300 series	Rows	1
Product spacing	1.30mm	Number of poles	2-12
product material	PA66, UL94V-0	Rated current	3A AC/DC
Product color	black/natural color	Rated voltage	30V AC/DC
Cable size	(AWG) #26-28	Contact resistance	100MΩMin
Metal Material	high conductivity copper	Withstand voltage	500V AC/minute
plating	gold-plated	temperature range	-25℃ - +85℃
Wire diameter OD	0.98mm(Max)	high current connector
Product Image

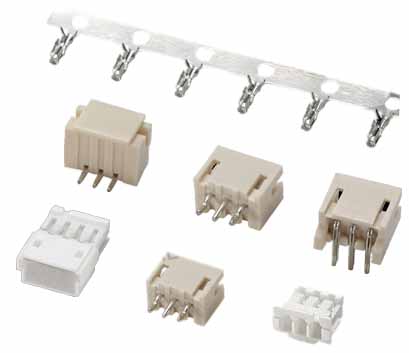

1.50mm, crimped terminal harness
product category	1511 series	Rows	1
Product spacing	1.50mm	Number of poles	2-15
product material	PA66, UL94V-0	Rated current	3A AC/DC
Product color	natural color	Rated voltage	350V AC/DC
Cable size	(AWG) #24-30	Contact resistance	1000MΩMin
Metal Material	phosphor bronze	Withstand voltage	500V AC/minute
plating	tin plating/gold plating	temperature range	-35℃-+85℃
Wire diameter OD	1.10mm(Max)	1.50mm, crimped terminal harness
Product Image

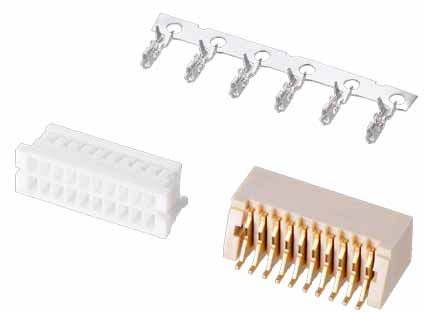

Double row connector harness 1.50mm (.059")
product category	1511 series	Rows	2
Product spacing	1.50mm	Number of poles	2*10
product material	LCP, UL94V-0	Rated current	3A AC/DC
Product color	natural color	Rated voltage	350V AC/DC
Cable size	(AWG) #24-30	Contact resistance	1000MΩMin
Metal Material	high conductivity copper	Withstand voltage	500V AC/minute
plating	tin plating/gold plating	temperature range	-35℃-+85℃
Wire diameter OD	1.10mm(Max)	Double row connector
Product Image

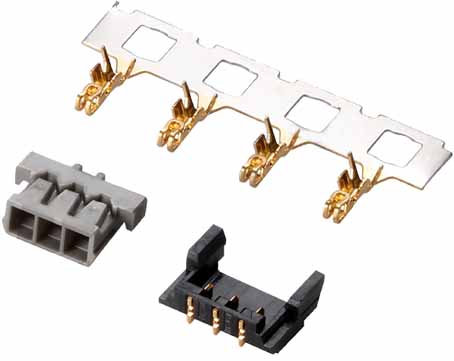

1.80mm (.071") automotive connector wiring harness
product category	1800 series	Rows	1
Product spacing	1.80mm	Number of poles	02
product material	PA4T/LCP, UL94V-0	Rated current	3.2A AC/DC
Product color	natural color	Rated voltage	350V AC/DC
Cable size	(AWG) #20-30	Contact resistance	10mΩMax
Metal Material	brass	Withstand voltage	1700V AC/minute
plating	tin plating	temperature range	-35℃-+85℃
Wire diameter OD	1.25mm(Max)	Automotive connector
Product Image
