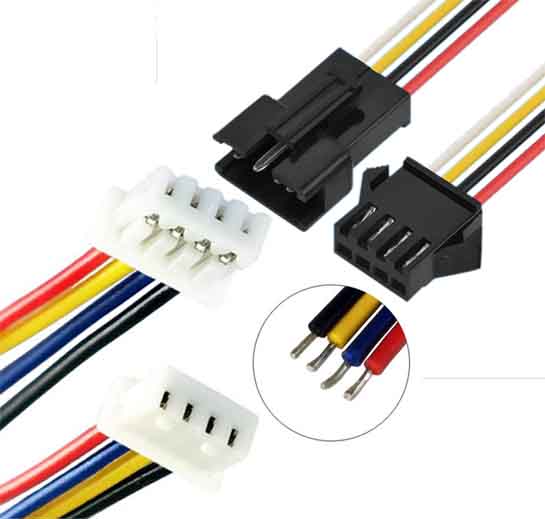

The terminal electronic wire is an abbreviation of the internal wire of electrical equipment. The performance of electrification is mainly based on weak current, which is different from the concept of cables in the strong current category.

Specifications of electronic wiring harness:
General electronic wire, its general nominal name is AWG (American Wire Gauge) as the unit. According to normal standards, internal conductors should be divided into bare copper and tinned copper. The wire diameter specifications of commonly used regular wires are shown in the following table:

Model number	Wire gauge	Wire number/wire diameter (core number/mm)	Outer diameter (mm)	Insulation thickness (mm)	Outer diameter (mm)
UL1007	30AWG	7/0.1	0.3mm	0.41mm	1.12mm
UL1007	28AWG	7/0.127	0.38mm	0.41mm	1.20mm
UL1007	26AWG	7/0.16	0.48mm	0.41mm	1.30mm
UL1007	24AWG	11/0.16	0.61mm	0.41mm	1.43mm
UL1007	22AWG	17/0.16	0.76mm	0.41mm	1.58mm
UL1007	20AWG	26/0.16	0.94mm	0.41mm	1.76mm
UL1007	18AWG	41/0.16	1.18mm	0.41mm	2.00mm
UL1007	16AWG	16/0.254	1.49mm	0.41mm	2.32mm
