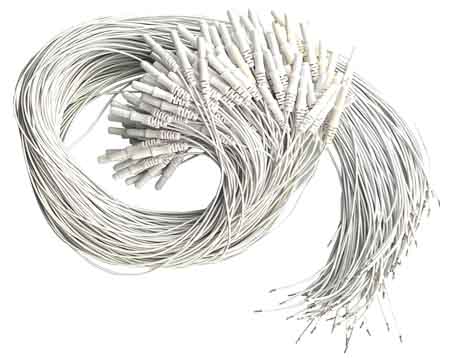

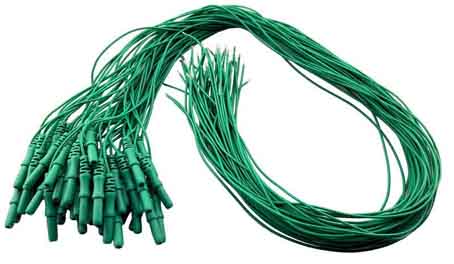

EEG cable for medical equipment
Wire harness processing classification: EEG connection line of medical equipment, EEG electrode line
The new design relates to the technical field of electronic equipment, especially an EEG electrode cable. Including electrode sheet and electrode cable. The outer surface of the electrode sheet is provided with a groove, and an identification patch is provided in the groove. A terminal is tightly welded on the outer surface of one side of the electrode sheet. The terminal is provided with a threaded cover on one side of the limit ring. One end of the electrode cable is provided with a sleeve, the end of the electrode cable away from the sleeve is provided with a plug, and an identification tube is provided on the sleeve. The EEG electrode cable identification line card is provided with a groove on the outer surface of the electrode sheet, and an identification patch is tightly bonded in the groove, which is convenient for medical staff to distinguish and organize the electrode cables. Improve the accuracy and timeliness of EEG examination. In addition, the sleeve is inserted into the terminal on the electrode sheet, and the screw cap is screwed to the external thread on the outer surface of the sleeve, which facilitates the disassembly and assembly of the electrode cable and the replacement of a new electrode cable. Solve the problem of the inconvenient arrangement of electrode cables and the inconvenience of replacing the electrode sheets with new electrode cable bundles
