CCC certification test standards for wires and cables

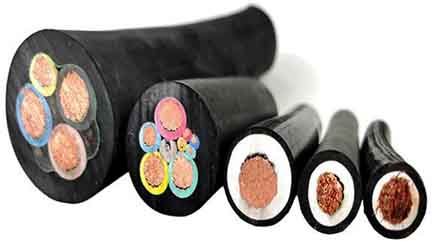

Mine rubber sheathed flexible cable
CCC certification testing standards for wires and cables:
1. GB 5013.1~7 rubber insulated cables with rated voltages of 450/750V and below;
GB/T 5013.8
JB/T 8735 Rubber insulated cords and flexible cables with rated voltages of 450/750V and below;

2. GB 5023.1~5, 7 PVC insulated cables with rated voltages of 450/750V and below;
GB/T 5023.6
JB/T 8734 PVC insulated cables, wires and cords with rated voltages of 450/750V and below;

3. GB 12972 mine-used rubber sheathed flexible cable;

4. GB 12528.1 cables (wires) for railway rolling stock with AC rated voltage of 3kV and below;
GB 12528.11 Cables (wires) for railway rolling stock with AC rated voltage of 3kV and below. Supplement: Cross-linked polyolefin insulated cables (wires) for railway rolling stock;
JB/T 8145 Cables (wires) for railway rolling stock with AC rated voltage of 3kV and below;

Wire and cable for rolling stock
Wire and cable CCC certification product range

1. Rubber sheathed flexible cables for mining;

2. Wires and cables for railway rolling stock with AC rated voltage of 3kV and below;

3. Rubber insulated wires and cables with rated voltages up to and including 450/750V;

4. Polyvinyl chloride insulated wires and cables with rated voltages up to and including 450/750V.

The above standards do not apply to wire assembly products, nor do they apply to bare wires, power cables, overhead insulated cables, communication cables, optical cables, and winding wire products.

Wire and cable catalog table
Product small class   product name

According to the standard number

Corresponding international standard number

Implementation rule number

  0101

Wire assembly    GB/T     IEC60799:1998

CNCA-C02-01: 2014 Implementation Rules for Compulsory Product Certification. Circuit switch and electrical equipment for protection or connection (electrical accessories).pdf
 GB/T26219-2010        CQC-C0201.01-2014 Implementation Rules for Compulsory Product Certification. Electrical accessories-wire assembly version.pdf
  0103

Crosslinked polyolefin insulated cables (wires) for railway rolling stock   GB/T12528-2008       CNCA-C01-01: 2014 mandatory product certification implementation rules. Wire and cable products .pdf
   CQC-C0101-2014 Implementation Rules for Compulsory Product Certification. Wire and cable products.pdf
Cables (wires) for railway rolling stock with AC rated voltage 3kV and below     GB/T12528-2008

     CNCA-C01-01: 2014 mandatory product certification implementation rules. Wire and cable products .pdf
   CQC-C0101-2014 Implementation Rules for Compulsory Product Certification. Wire and cable products.pdf
  0104

Rubber insulated cables with rated voltage 450/750V and below    GB/T5013.1-2008

  IEC 60245-1:2003

   CNCA-C01-01: 2014 mandatory product certification implementation rules. Wire and cable products .pdf
  GB/T5013.2-2008

  IEC 60245-2:1998

   CQC-C0101-2014 Implementation Rules for Compulsory Product Certification. Wire and cable products.pdf
  GB/T5013.3-2008

  IEC 60245-3:1994


  GB/T5013.4-2008

  IEC 60245-4:2004


  GB/T5013.5-2008

  IEC 60245-5:1994


  GB/T5013.6-2008

  IEC 60245-6:1994


  GB/T5013.7-2008

  IEC 60245-7:1994


  GB/T5013.8-2013

  IEC 60245-8:2004


Rubber insulated cords and flexible cables with rated voltage 450/750V and below     JB/T8735.2-2016

  CNCA-C01-01: 2014 Implementation Rules for Compulsory Product Certification. Wire and cable products .pdf
  JB/T8735.3-2016

  CQC-C0101-2014 Implementation Rules for Compulsory Product Certification. Wire and cable products.pdf
  0105

PVC insulated cables with rated voltage 450/750V and below    GB/T5023.6-2006

  IEC60227-6:2001

CNCA-C01-01: 2014 Implementation Rules for Compulsory Product Certification. Wire and cable products .pdf
  GB/T5023.1-2008

  IEC60227-1:2007

CQC-C0101-2014 Implementation Rules for Compulsory Product Certification. Wire and cable products.pdf
  GB/T5023.2-2008

  IEC60227-2:2003


  GB/T5023.3-2008

  IEC60227-3:1997


  GB/T5023.4-2008

  IEC60227-4:1997


  GB/T5023.5-2008

  IEC60227-5:2003


  GB/T5023.7-2008

  IEC60227-7:2003


PVC insulated cables, wires and cords with rated voltages of 450/750V and below     JB/T8734.2-2016

  CNCA-C01-01: 2014 Implementation Rules for Compulsory Product Certification. Wire and cable products .pdf
  JB/T8734.3-2016

  CQC-C0101-2014 Implementation Rules for Compulsory Product Certification. Wire and cable products.pdf
  JB/T8734.4-2016


  JB/T8734.5-2016


  JB/T8734.6-2016




Rubber insulated wires and cables
