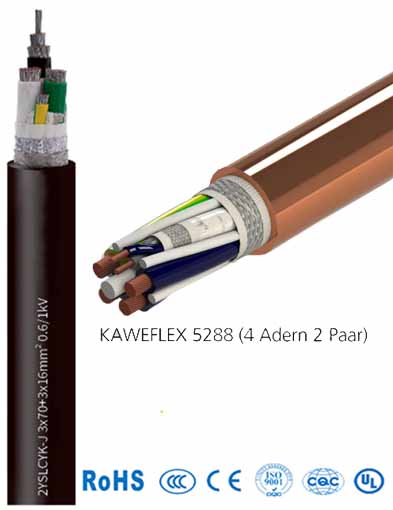

Cable de Motor de Frecuencia Variable con Doble Blindaje

Motor cable

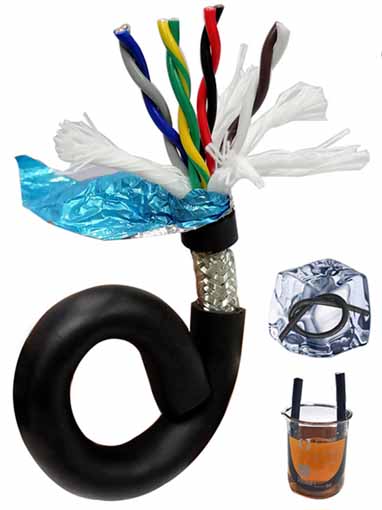

Double-shielded, dedicated cable for variable frequency motor

Application areas:
Used in the automobile, food industry, environmental technology, packaging industry, and machine tool industry. Particularly suitable for industrial pumps, ventilation equipment, conveyor belts and air conditioning installations and similar applications.

Lead wire: stranded tinned copper wire, conforming to IEC 60228 standard, category 5
  Core insulation: special PE
  Core wire color: colored core wire
  Core structure: 3 + 3 cable
  Shielding: aluminum foil wrapping + tinned copper wire braiding
  Sheath material: special PVC
  Sheath color: gray (RAL7001), black can be used outdoors

  Reference standard :
  Core wire: conform to VDE 0812/0250/0281 standard, sheath conform to VDE 0281/0250
  Rated voltage: 600/1000V

temperature range :
  Mobile installation: -5°C to +70°C
  Fixed installation: -40°C to +70°C
  Test voltage: 3500V

  Minimum bending radius:
  Fixed installation
  12mm and below: 5X cable diameter
  >12 to 20mm: 7.5X cable diameter
  >20 mm: 10X cable diameter

  Mobile installation
  12mm and below: 10X cable diameter
  >12 to 20mm: 15X cable diameter
  >20 mm: 20X cable diameter

  Flame retardant properties: flame retardant and self-extinguishing in accordance with GB/T 18380.12 (IEC 60332-1)
  No hazardous substances: RoHS compliant
Shielded cable of servo motor
