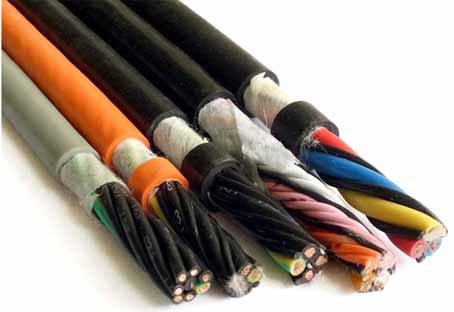

Basic model and name of UL, VDE silicone rubber control cable: KGG, KGGR, KGGP, KGGRP, KGGRP1, KFG. This product is suitable for laying cables with AC rated voltage 450/750V, mobile or fixed devices.
The cable has good flexibility, high temperature resistance, corrosion resistance, and voltage resistance.

The use of silicone rubber control cable
This product is suitable for mobile or fixed installation with AC rated voltage 450/750V and below, for electrical instrument connection lines or signal transmission. The cable has good thermal stability and can maintain good electrical properties and flexibility in high temperature, low temperature, and corrosive conditions. It is suitable for special requirements such as mobile temperature resistance in metallurgy, electric power, petrochemical and other industries.
Implementation standards for silicone rubber control cables
Q/HHTZH004.2
Flame-retardant and fire-resistant characteristic test: implement GB12666-90 standard

Use characteristics of silicone rubber control cable
1. AC rated voltage: U0/U 450/750KV
Maximum working temperature: 180℃
2. Minimum ambient temperature: Silicone rubber sheath: -60℃ for fixed laying, -20℃ for non-fixed laying
3. The cable installation temperature should not be lower than -20℃.
4. Allowable bending radius of the cable: the minimum non-armoured cable is 6 times the outer diameter of the cable


Basic model and name
KGG
Silicone rubber insulated and sheathed control cable
KGGR
Silicone rubber insulated and sheathed control flexible cable
KGGP
Silicone rubber insulated and sheathed copper wire braided shielded control cable
KGGRP
Silicone rubber insulated and sheathed copper wire braided shielded control soft cable
KGGRP1
Silicone rubber insulated and sheathed tinned braided shielded control flexible cable
KFG
Fluoroplastic insulated and silicone rubber sheathed control cable
Remarks: If flame-retardant silicone rubber cable is required, add ZR before the model;
YGC silicone rubber insulated and sheathed mobile power cable
