Classification and selection of TPU wires and cables
Classification of TPU cables: power energy cables, communication cables, geographic exploration cables, automotive cables, industrial cables. Others: spring wire, retractable wire, image and audio wire, medical.
The main classification description of TPU cable:
Wire and cable raw materials, have you chosen TPU?
Comparison of characteristics of polyurethane TPU, EPDM, and PVC in cable applications

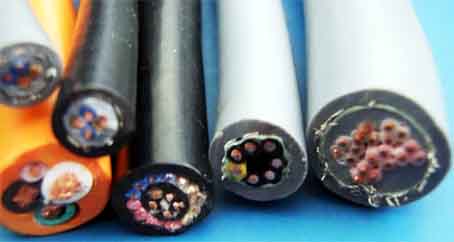

The cable sheath of TPU has:
Unparalleled hardness
Low temperature flexibility
Abrasion resistance
Environmental and weather resistant
These excellent mechanical and physical properties extend the durability and service life of the cable.
|
car
|
Anti-lock brake system (ABS) cables, odometer cables, automotive communication cables About 85A hardness, hydrolysis resistance, elasticity and flexibility; matte surface, heat resistance |
|
Cables for Geographical Exploration
|
Geophone cable, oil field exploration cable, land/sea exploration cable 85A-89A hardness, degree of hydrolysis and flexibility, wear resistance; weatherability and low temperature flexibility |
| Consumer electronics related cables |
Headphone cable, mobile phone charger cable, audio cable, cigarette lighter cable, USB cable, telephone cable, computer accessory cable 70A-90A polyether type, elasticity and flexibility are not necessary; delicate matte surface |
|
Cables for medical equipment
|
ECG cable, blood oxygen detection cable, massager cable, electrode lead cable Polyether, extruded TPU, soft specifications, elasticity and flexibility; USP |
|
Energy and industrial cables
|
Train/subway/sea/military cables, wind power cables, equipment cables, mining cables, computer numerical control cables, power energy cables 78A-90A is generally polyether, elastic and flexible, weather resistance; halogen-free flame retardant trend |
|

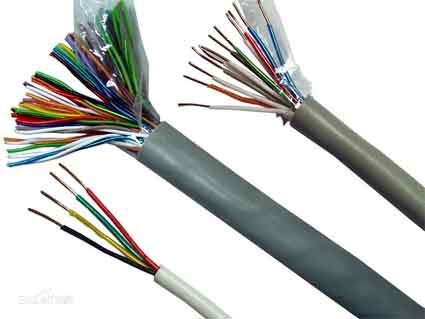

Telecommunication and communication cables
|
Optical fiber cable and data cable
|
Wire and cable raw materials, have you chosen TPU?
Comparison of characteristics of polyurethane TPU, EPDM, and PVC in cable applications
|
performance
|
Polyurethane TPU
|
Ternary isopropyl rubber EPDM
|
Polyvinyl Chloride PVC
|
|
Environmental protection
|
Environmental protection
|
Environmental protection
|
Not environmentally friendly
|
|
Relative density
|
1.12-1.2
|
0.9-0.95
|
1.16-1.35
|
|
Tensile Strength
|
30-50Mpa
|
6-10Mpa
|
8-15Mpa
|
|
Tear strength
|
320-500PSI
|
150-220PSI
|
|
|
Hydrolysis resistance
|
that's good
|
Acceptable
|
Acceptable
|
|
Weather resistance and corrosion resistance
|
that's good
|
Acceptable
|
Acceptable
|
|
Oil and chemical resistance
|
that's good
|
Acceptable
|
difference
|
|
Low temperature flexibility
|
that's good
|
Acceptable
|
difference
|
|
Low temperature resistance
|
that's good
|
Acceptable
|
difference
|
|
Surface wear-resistant
|
that's good
|
general
|
difference
|
|
Anti-aging
|
that's good
|
Acceptable
|
general
|
|
Antifungal
|
that's good
|
Acceptable
|
general
|
|
Service life
|
More than 25 years of use in harsh environments
|
||
|
Processing performance
|
The mechanical strength is extremely high, the processing performance is excellent, no vulcanization is required, and the extruder that extrudes PVC can be used to extrude TPU (the screw length is greater than 1:25)
|
The performance before vulcanization is very poor, and the strength is low after vulcanization, which is only equivalent to one third of TPU. After adding fire retardant to make flame retardant, the strength is worse
|
The soft grade contains a lot of plasticizers without exception, has poor low temperature resistance, and plasticizers may migrate, which is not environmentally friendly
|
|
Use environment
|
Except for use in general environments. Use in harsh environments: For example, dynamic cables have high-strength requirements, and need to be wound, twisted or dragged in rocks, ground, desert, ice and snow, or immersed in water with great temperature difference between day and night, etc.
|
It is not suitable for use in general environment, and is not suitable for areas that require higher strength and higher wear resistance. At the same time, its flame-retardant model has lower strength, which limits its use
|
It is not suitable for use in general environment, which requires environmental protection, wear resistance, fatigue resistance, and low temperature resistance, and its soft grade contains a lot of plasticizers
|
The cable sheath of TPU has:
Unparalleled hardness
Low temperature flexibility
Abrasion resistance
Environmental and weather resistant
These excellent mechanical and physical properties extend the durability and service life of the cable.
|
58202
|
Polyether
|
88A
|
Black and white, flame-retardant V0 cable dedicated |
|
A1094/1098
|
Polyether
|
87A
|
Halogen-free flame retardant, V0 extruded 3G wire
|
|
A1131
|
Polyether
|
82A
|
Halogen-free, transparent, extruded wind power cable
|
