Custom Connector & Wire Harness Processing Manufacturer

China wire, cable, wire harness manufacturers

HPN & HPN-R wire and cable supplier

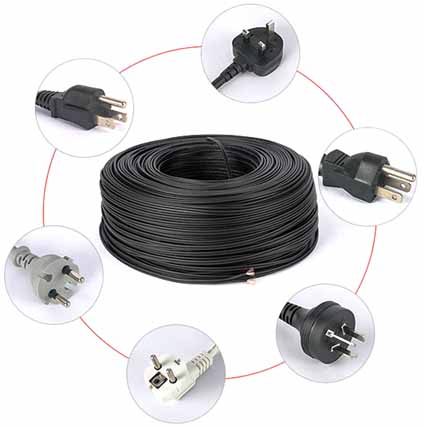

UL rubber wire HPN-R SJOW 18AWG, 16AWG/2C 3-core
HPN wires and cables are suitable for power cables with AC rated voltages of 300V and below, household appliances, power tools, and various mobile electrical equipment and tools.
The long-term allowable working temperature of the cable should not exceed 105°C. The cable has a certain degree of weather resistance and a certain degree of oil resistance, and is suitable for outdoor or occasions exposed to oil. The cable is flame-retardant, meeting the requirements of GB/T18380.1-2001 single vertical burning, FT2, VW-1

HPN (Heater Parallel Neoprene), a flexible cord that applies a heater. Chloroprene insulation, EPR rubber insulation or CPE rubber insulation.

The temperature resistance is 90 degrees, 105 degrees, and it is generally black, white, and gray in three colors.
HPN
AWG*C outer diameter
18AWG*2C 3.5*6.95
16AWG*2C 3.75*7.6
14AWG*2C 4.8*9.6
18AWG*3C 3.7*9.5
16AWG*3C 4.0*10.1
14AWG*3C 5.1*12.2

HPN wire, HPN rubber wire, UL American rubber wire, HPN power cord, HPN-R wire
Certification standards: UL, CUL, in line with ROHS
Specification details:
U North American rubber wire HPN18AWG/2C
UL American rubber wire HPN18AWG/3C
UL American rubber wire HPN16AWG/2C
UL American rubber wire HPN16AWG/3C
HPN wire, 14AWG*2C (3C)
