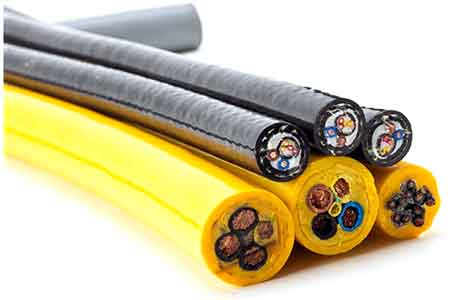

PUR cable, material (polyurethane). Used for wires and cables in abrasion-resistant, oil-resistant, and low-temperature environments.

Definition of PUR cable
PUR cable is one of the cables. The material of PUR cable has the advantages of oil and abrasion resistance, while PVC is made of ordinary materials. In the cable industry in the past few years, the position of polyurethane has become increasingly important. At a certain temperature, the mechanical properties of the material are similar to rubber, and the combination of thermoplasticity and elasticity results in TPE thermoplastic elastomer.

Category of PUR cable
PUR cables are mainly divided into: PUR oil-resistant and wear-resistant (unshielded) cables, PUR oil-resistant and wear-resistant shielded cables, etc. In addition to standard polyurethanes, there are the following types of polyurethanes:
Semi-dark polyurethane (PUR) (low adhesion)
Rough polyurethane (PUR) (rough surface, low adhesion)
Fireproof polyurethane (PUR)
Halogen-free and fire-resistant polyurethane (PUR)

Performance of PUR cable
PUR cable has excellent oil resistance, good toughness, wear resistance, cold resistance (low temperature resistance), water resistance, aging resistance, acid and alkali resistance, weather resistance, and long service life. Many excellent functions such as anti-ultraviolet rays and energy release. It is suitable for greasy dirt and extremely harsh occasions in low temperature environment.
Cable insulation materials generally cannot withstand high mechanical stress, and on the other hand they have been widely used as sheath materials. Especially for those flexible control and connection cables that often come into contact with sharp edges and rough surfaces. Because the cable is easy to cause the incision in this environment, and the incision will be stretched when the cable is used for flexible use. In addition, the squeezing and impact of tools and machines will also produce comprehensive stress. Polyurethane has the following important continuing properties:
High tensile strength
Tear resistance
Anti-notch
Wear resistance
Resistant to repeated bending
Shock proof
Low temperature flexibility


Chemical characteristics of PUR cables
Chemical resistance is related to many factors, such as five chemical types, reaction time, temperature, volume, concentration, and the type of polyurethane used. Compared with many other materials, such as rubber or polyvinyl chloride (PVC), polyurethane (PUR) has better resistance to chemical reactions. Its outstanding chemical properties are:
Good resistance to mineral oil
Good resistance to non-alcoholic gasoline
Can be stored underwater
Good resistance to many solvents
If exposed to a humid and warm environment for a long time, polyurethane based on polyester may be decomposed by microorganisms. However, the polyurethane based on polyester produced by Yichu will not be decomposed by microorganisms. Ether-based polyurethane and lipid-based polyurethane can be distinguished by their saponification value (VZ) category.
Ether polyurethane (resistant)-VZ≤200
Lipid polyurethane (non-resistant) -VZ≥350
If exposed to hot water or tropical climate for a long time, the polyurethane with polyester as the main component will produce a chemical reaction, which will reduce the mechanical strength. Relatively speaking, if you use polyurethane with polyester as the main component, it is more resistant to decomposition.
Ether polyurethane has weather resistance and ozone resistance in various climates. The color may fade under sunlight, but this alone will not affect its performance.


Application areas of PUR cables
Widely used in industrial machinery and equipment, transmission and transmission control systems, various industrial sensors, testing instruments, electronic appliances, household appliances, electromechanical, kitchen and other equipment. It is used for power supply and signal connection in harsh environment and oil-proof occasions.
