Manufacturer of high temperature wire
High temperature wires are high temperature resistant wires made of special materials (silicone rubber, Teflon). It is processed with high temperature resistance, high strength and special technology. The main features are high temperature resistance, insulation, fire retardant, corrosion resistance, aging resistance, weather resistance, high strength, high modulus, antistatic, smooth appearance, etc.
Classification of high temperature wires
There are many types of high temperature wires, the commonly used ones are: Fluoroplastic insulated high temperature wire, Silicone rubber insulated high temperature wire, Silicone rubber insulated braided wire, Multi-core high temperature cable, Mineral insulated fire-resistant cables, high-temperature electronic wires. Teflon wire, aircraft wax wire, nylon sheathed wire, Teflon high-voltage wire, silicone rubber high-voltage wire, mica high-temperature wire.
Material of high temperature wire
High temperature wires generally have 2 kinds of materials

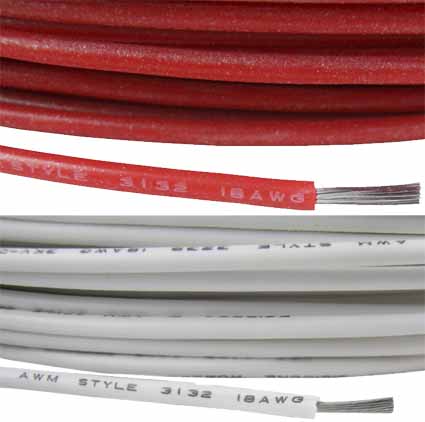

1: Silicone rubber, good softness

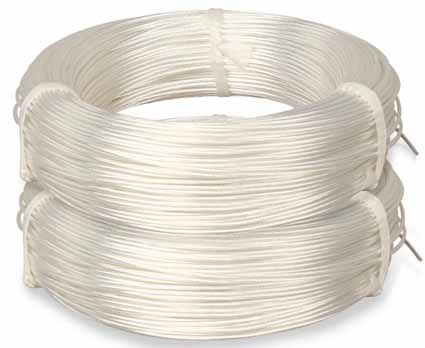

2: Teflon material (that is, PTFE), Teflon material is harder
Silicone rubber wires can be used for the installation and connection of electrical circuits with AC rated voltages of 500 volts and below. It is widely used in electric heating appliances, paint booths, lighting equipment and household appliances.
Teflon wires can be used in instrumentation, aerospace, electric power smelting, chemicals, ships, vehicles, food machinery, household appliances, ovens, etc.
Features/uses:
Has excellent corrosion resistance, resistance to oil, strong acid, strong alkali, strong oxidant, etc.; It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent flame resistance, aging resistance and long service life.
Specification structure and technical parameters of high temperature wire:
|
Nominal cross section
（mm）
|
The structure of the conductor Root number / wire diameter
（mm）
|
Insulation thickness
（mm）
|
Average outer diameter
（mm）
|
Conductor DC resistance at 20 ℃
（Ω/km）
|
Packing/length
（m）
|
|
0.014
|
7/0.05
|
0.15
|
0.45
|
1343
|
500
|
|
0.035
|
7/0.08
|
0.15
|
0.60
|
525
|
500
|
|
0.05
|
7/0.10
|
0.15
|
0.60
|
330
|
500
|
|
0.08
|
7/0.12
|
0.20
|
0.78
|
227
|
500
|
|
0.12
|
7/0.15
|
0.20
|
0.85
|
150
|
500
|
|
0.20
|
7/0.20
|
0.25
|
1.10
|
83.5
|
200
|
|
0.35
|
19/0.16
|
0.25
|
1.30
|
49.5
|
200
|
|
0.50
|
19/0.18
|
0.25
|
1.40
|
36.0
|
200
|
|
0.75
|
19/0.23
|
0.25
|
1.70
|
22.7
|
200
|
|
1.0
|
19/0.26
|
0.25
|
1.80
|
19.0
|
200
|
|
1.20
|
19/0.28
|
0.30
|
2.0
|
15.3
|
200
|
|
1.50
|
19/0.32
|
0.30
|
2.20
|
11.7
|
200
|
|
2.0
|
19/0.37
|
0.30
|
2.45
|
9.45
|
100
|
|
2.5
|
19/0.41
|
0.40
|
2.95
|
6.86
|
100
|
|
4.0
|
37/0.37
|
0.40
|
3.40
|
4.51
|
100
|
|
6.0
|
37/0.45
|
0.50
|
4.20
|
3.05
|
100
|
|
8.0
|
133/0.28
|
0.50
|
5.20
|
2.16
|
100
|
|
10
|
133/0.32
|
0.50
|
5.80
|
1.68
|
100
|
|
16
|
133/0.39
|
0.60
|
7.00
|
1.13
|
100
|
|
20
|
133/0.45
|
0.60
|
8.0
|
0.886
|
100
|
|
25
|
196/0.40
|
0.6
|
8.8
|
0.734
|
100
|
|
35
|
494/0.30
|
0.7
|
10.4
|
0.511
|
100
|
|
50
|
551/0.40
|
0.8
|
12.2
|
0.358
|
100
|
|
70
|
551/0.40
|
1.0
|
14.6
|
0.270
|
100
|
|
95
|
760/0.40
|
1.2
|
17.2
|
0.210
|
100
|
|
0.03
|
1/0.20
|
0.15
|
0.50
|
560
|
500
|
|
0.05
|
1/0.26
|
0.17
|
0.60
|
386.9
|
500
|
|
0.07
|
1/0.30
|
0.20
|
0.70
|
245
|
500
|
|
0.12
|
1/0.40
|
0.20
|
0.80
|
146.9
|
500
|
|
0.2
|
1/0.50
|
0.25
|
1.0
|
94
|
500
|
|
0.3
|
1/0.60
|
0.30
|
1.20
|
65.3
|
500
|
|
0.5
|
1/0.80
|
0.3
|
1.40
|
36.7
|
500
|
|
0.75
|
1/0.97
|
0.26
|
1.50
|
24.7
|
500
|
|
1.13
|
1/1.20
|
0.30
|
1.80
|
16.5
|
500
|
