1.00, 1.20, 1.25, 1.27mm micro fpc board pin connector Wire harness
Advantages of ultra-small, crimping PCB, 1.0mm terminal connector wiring harness:
1. The crimping ffc fpc type wiring harness is produced and processed by fully automatic equipment, which can ensure stable quality even in mass production.
2. Realize wire-to-board W-B connection in a very small space.
3. CJST's professional piercing crimping technology can ensure stable quality even when using extremely thin wires. (The smallest crimpable wire AWG#36)
4. The shortest wire harness length can be crimped 30mm, and the longest wire harness length is 300mm.

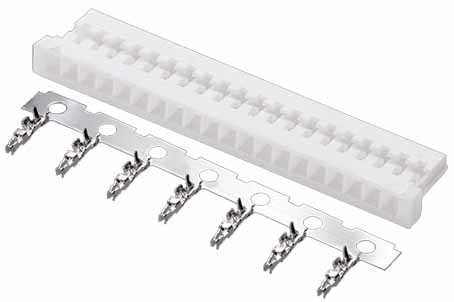

1.00mm (.039") pitch micro fpc board connector
product category	1000 series	Rows	1
Product spacing	1.00mm	Number of poles	2-20
product material	LCP, UL94V-0	Rated current	0.8A AC/DC
Product color	natural color	Rated voltage	30V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
Metal Material	phosphor bronze	Withstand voltage	200V AC/minute
plating	tin plating/gold plating	temperature range	-25℃ - +85℃
Wire diameter OD	0.50mm(Max)	micro connector
Product Image

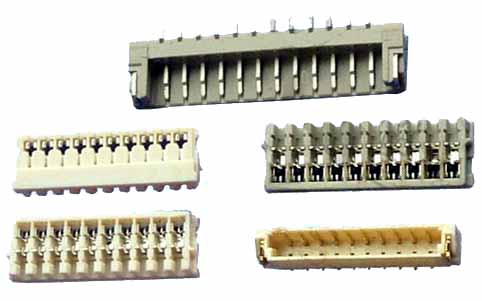

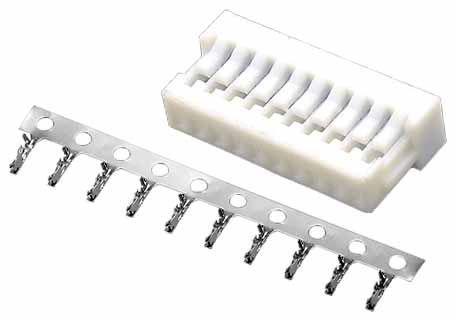

1.00mm pitch micro fpc board connector
product category	1000 series	Cable size	(AWG)#28-32
Product spacing	1.00mm	Wire diameter OD	0.92mm(Max)
Product material	phosphor bronze	Rated current	1A AC/DC
Product electroplating	tin plating/gold plating	Rated voltage	125V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
temperature range	-25℃ - +85℃	Withstand voltage	500V AC/minute
Product Image

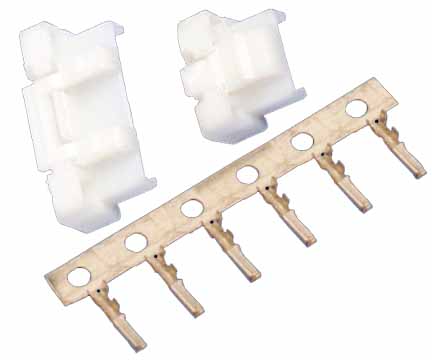

1.0mm wire to board connector
product category	1002 series	Number of rows	1
Product spacing	1.00mm	Number of poles	2-26
product material	PA66/PBT, UL94V-0	Rated current	1A AC/DC
Product color	natural color	Rated voltage	50V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
Metal Material	brass	Withstand voltage	100MΩMin
plating	tin plating/gold plating	temperature range	-25℃ - +85℃
Withstand voltage	500V AC/minute	wire to board connector
Product Image

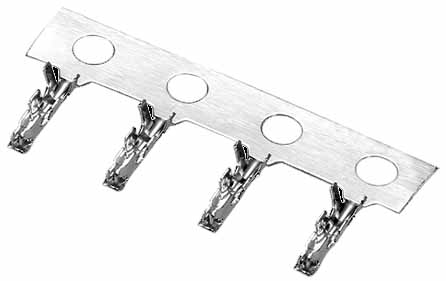

1.20mm (.047") wire-to-board connector, crimp terminal
product category	1201 series	Number of rows	1
Product spacing	1.20mm	Number of poles	2-6
product material	LCP, UL94V-0	Rated current	2A AC/DC
Product color	natural color	Rated voltage	50V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
Metal Material	phosphor bronze	Cable size	(AWG)#28-30
plating	tin plating/gold plating	temperature range	-25℃ - +85℃
Wire diameter OD	0.70mm(Max)	wire to board connector
Product Image

1,20 mm (.047") , 90°, SMT header connector
product category	1224 series	Number of rows	1
Product spacing	1.20mm	Number of poles	2-10
product material	LCP, UL94V-0	Rated current	2A AC/DC
Product color	natural color	Rated voltage	50V AC/DC
Insulation resistance	100MΩMin	Contact resistance	20mΩMax
Metal Material	phosphor bronze	Cable size	(AWG)#28-30
plating	tin plating/gold plating	temperature range	-25℃ - +85℃
Wire diameter OD	0.70mm(Max)	SMT header connector
Product Image

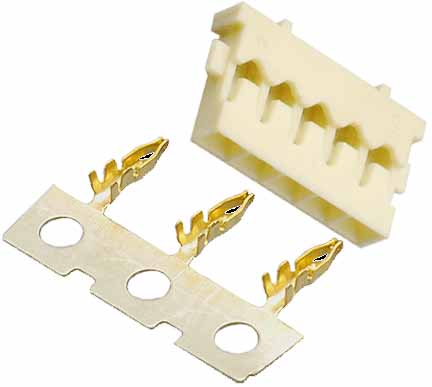

1.25mm (.049") wire-to-board connector, crimp terminal
product category	1250 series	Number of rows	1
Product spacing	1.25mm	Number of poles	2-20
product material	LCP, UL94V-0	Rated current	1A AC/DC
Product color	natural color	Rated voltage	50V AC/DC
Insulation resistance	100MΩMin	Withstand voltage	500V AC/minute
Metal Material	phosphor bronze	Cable size	(AWG) #26-32
plating	tin plating/gold plating	temperature range	-25℃ - +85℃
Wire diameter OD	0.90mm (Max)	1.25mm (.049") wire-to-board connector
Product Image

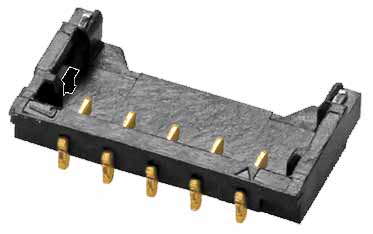

1.25mm terminal connector
product category	1254 series	Number of rows	1
Product spacing	1.25mm	Number of poles	2-30
product material	LCP, UL94V-0	Rated current	1A AC/DC
Product color	natural color	Rated voltage	50V AC/DC
Insulation resistance	100MΩMin	Withstand voltage	500V AC/minute
Metal Material	phosphor bronze	Cable size	(AWG) #26-32
plating	tin plating/gold plating	temperature range	-35℃-+85℃
Wire diameter OD	1mm (Max)	1.25mm terminal connector
Product Image

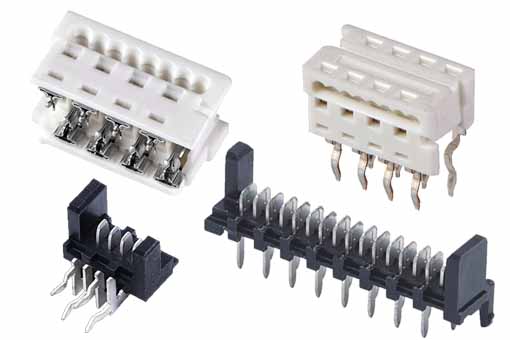

1.27mm (.050") IDC Insulation Displacement Connector
product category	1271 series	Number of rows	2
Product spacing	1.27mm	Number of poles	2*2-2*13
product material	LCP, UL94V-0	Rated current	1.2A AC/DC
Product color	natural color	Rated voltage	750V AC/DC
Insulation resistance	100MΩMin	Withstand voltage	1000V AC/minute
Metal Material	brass	Cable size	(AWG) #26-32
plating	tin plating/gold plating	temperature range	-35℃-+85℃
Wire diameter OD	1.50mm (Max)	IDC Connector
Product Image

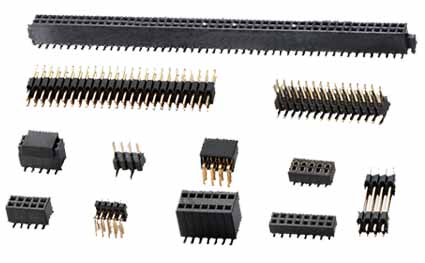

1.27mm (.050"), 90°, male and female, DIP header connector
product category	1272 series	Number of rows	2
Product spacing	1.27mm	Number of poles	2*1-2*40
product material	PA6T, UL94V-0	Rated current	1A AC/DC
Product color	natural color	Rated voltage	250V AC/DC
Insulation resistance	100MΩMin	Withstand voltage	500V AC/minute
Metal Material	brass	Insulation resistance	500MΩMin
plating	tin plating/gold plating	temperature range	-35℃-+85℃
Wire diameter OD	1mm (Max)	Pin header, female header, connector
Product Image

1.27mm wire-to-board connector, PIN terminal
product category	1272 series	Number of rows	1
Product spacing	1.27mm	Number of poles	15
product material	PBT, UL94V-0	Rated current	1.5A AC/DC
Product color	black	Rated voltage	30V AC/DC
Wire diameter OD	2.90mm (Max)	Withstand voltage	500V AC/minute
Metal Material	phosphor bronze	Cable size	(AWG) #18-22
plating	gold-plated	temperature range	-35℃-+85℃
Insulation resistance	1000MΩMin	Pin header, female header, connector
Product Image
