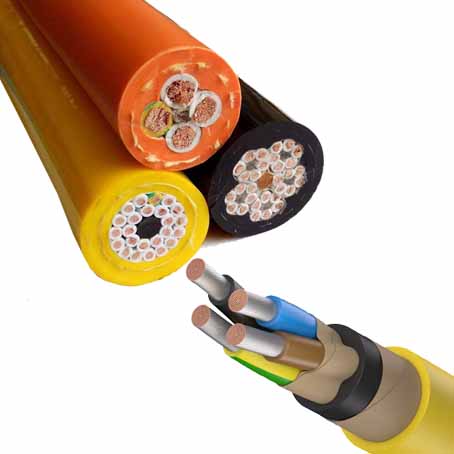

NYY-J/ NYY-O CE European Standard Power Cable
NYY-J/NYY-O
Application and description
NYY power cables are dedicated to the energy supply of cable ducts, power stations, industrial and distribution boards, and user networks. It can also be used in brick walls and concrete (non-compact concrete). The cable cannot be installed in a vibrating or rocking position. NYY cables can be installed in the open air, laid underground, in water and indoors, but mechanical damage should be prevented. The cable is UV resistant and can be used outdoors.
Standard
VDE-0276 Part-603 & Part-627, HD 603.1 & 627 S1, IEC 60502, VDE 0482-332-1-2, DIN EN60332-1-2/IEC 60332-1, CE low voltage 73/23/EEC and 93/68/EEC directives, ROHS
Cable structure
-Solid or stranded bare copper conductor
-Follow DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2, IEC 60228 cl.1/cl.2
-PVC insulation DIV4 category, follow HD 603.1
-Color coding complies with DIN VDE 0293-308, 0276-603/HD 186
-3+1/2 conductor core color
Type J: yellow-green (1/2), brown, black, gray
Class O: blue (1/2), brown, black, gray
-PVC outer sheath DMV5 category, follow HD 603.1
Cable parameters
Wire gauge |
Number of cores x conductor cross-sectional area # x mm² |
Nominal outer diameter mm |
Nominal copper weight kg/km |
Nominal cable weight kg/km |
12 | 1x4re | 9.0 | 38.0 | 130.0 |
10 | 1x6re | 10.0 | 58.0 | 136.0 |
8 | 1x10re | 11.0 | 96.0 | 182.0 |
6 | 1x16re | 12.0 | 154.0 | 252.0 |
4 | 1x25rm | 13.0 | 240.0 | 365.0 |
2 | 1x35rm | 14.0 | 336.0 | 480.0 |
1 | 1x50rm | 16.0 | 480.0 | 620.0 |
2/0 | 1x70rm | 17.0 | 672.0 | 840.0 |
3/0 | 1x95rm | 19.0 | 912.0 | 1100.0 |
4/0 | 1x120rm | 21.0 | 1152.0 | 1320.0 |
300mcm | 1x150rm | 23.0 | 1440.0 | 1610.0 |
350mcm | 1x185rm | 25.0 | 1776.0 | 1.980.0 |
500mcm | 1x240rm | 28.0 | 2304.0 | 2550.0 |
750mcm | 1x300rm | 30.0 | 2880.0 | 3200.0 |
- | 1x400rm | 34.0 | 3840.0 | 4000.0 |
- | 1x500rm | 38.0 | 4800.0 | 5100.0 |
16 | 3x1.5re | 12.0 | 43.0 | 225.0 |
14 | 3x2.5re | 13.0 | 72.0 | 275.0 |
12 | 3x4re | 14.0 | 115.0 | 375.0 |
10 | 3x6re | 15.0 | 173.0 | 480.0 |
8 | 3x10re | 18.0 | 288.0 | 675.0 |
6 | 3x16re | 19.0 | 461.0 | 880.0 |
4 | 3x25rm | 24.0 | 720.0 | 1390.0 |
2 | 3x35sm | 25.0 | 1008.0 | 1600.0 |
1 | 3x50sm | 28.0 | 1440.0 | 2000.0 |
2/0 | 3x70sm | 31.0 | 2016.0 | 2700.0 |
3/0 | 3x95sm | 35.0 | 2736.0 | 3600.0 |
4/0 | 3x120sm | 39.0 | 3456.0 | 4400.0 |
300mcm | 3x150sm | 44.0 | 4320.0 | 4910.0 |
350mcm | 3x185sm | 49.0 | 5328.0 | 6520.0 |
500mcm | 3x240sm | 53.0 | 6912.0 | 8290.0 |
4 | 3x25rm/16re | 25.0 | 874.0 | 1575.0 |
2 | 3x35sm/16re | 26.0 | 1162.0 | 1700.0 |
1 | 3x50sm/25rm | 30.0 | 1680.0 | 2325.0 |
2/0 | 3x70sm/35sm | 35.0 | 2352.0 | 2900.0 |
3/0 | 3x95sm/50sm | 37.0 | 3216.0 | 3900.0 |
4/0 | 3x120sm/70sm | 42.0 | 4128.0 | 4900.0 |
300mcm | 3x150sm/70sm | 47.0 | 4992.0 | 5800.0 |
350mcm | 3x185sm/95sm | 51.0 | 6240.0 | 7400.0 |
500mcm | 3x240sm/120sm | 59.0 | 8064.0 | 9700.0 |
- | 3x300sm/150sm | 66.0 | 10080.0 | 12000.0 |
16 | 4x1.5re | 13.0 | 58.0 | 220.0 |
14 | 4x2.5re | 14.0 | 96.0 | 300.0 |
12 | 4x4re | 16.0 | 154.0 | 410.0 |
10 | 4x6re | 17.0 | 230.0 | 520.0 |
8 | 4x10re | 19.0 | 384.0 | 720.0 |
6 | 4x16re | 22.0 | 614.0 | 1050.0 |
4 | 4x25rm | 26.0 | 960.0 | 1650.0 |
2 | 4x35sm | 28.0 | 1344.0 | 1860.0 |
1 | 4x50sm | 31.0 | 1920.0 | 2500.0 |
2/0 | 4x70sm | 35.0 | 2688.0 | 3300.0 |
3/0 | 4x95sm | 38.0 | 3648.0 | 4500.0 |
4/0 | 4x120sm | 42.0 | 4608.0 | 5500.0 |
300mcm | 4x150sm | 47.0 | 5760.0 | 6880.0 |
350mcm | 4x185sm | 52.0 | 7104.0 | 8460.0 |
500mcm | 4x240sm | 59.0 | 9216.0 | 11000.0 |
16 | 5x1.5re | 13.0 | 72.0 | 280.0 |
14 | 5x2.5re | 15.0 | 120.0 | 360.0 |
12 | 5x4re | 16.0 | 192.0 | 490.0 |
10 | 5x6re | 18.0 | 288.0 | 650.0 |
8 | 5x10re | 20.0 | 480.0 | 870.0 |
6 | 5x16re | 23.0 | 768.0 | 1255.0 |
4 | 5x25rm | 30.0 | 1200.0 | 1980.0 |
2 | 5x35rm | 34.0 | 1680.0 | 2650.0 |
16 | 7x1.5re | 14.0 | 101.0 | 370.0 |
16 | 10x1.5re | 17.0 | 144.0 | 530.0 |
16 | 12x1.5re | 18.0 | 173.0 | 580.0 |
16 | 14x1.5re | 19.0 | 202.0 | 620.0 |
16 | 16x1.5re | 20.0 | 230.0 | 690.0 |
16 | 19x1.5re | 21.0 | 274.0 | 770.0 |
16 | 21x1.5re | 22.0 | 302.0 | 850.0 |
16 | 24x1.5re | 23.0 | 346.0 | 900.0 |
16 | 30x1.5re | 24.0 | 432.0 | 1030.0 |
16 | 40x1.5re | 28.0 | 576.0 | 1260.0 |
16 | 61x1.5re | 32.0 | 878.0 | 1760.0 |
14 | 7x2.5re | 16.0 | 168.0 | 460.0 |
14 | 10x2.5re | 19.0 | 240.0 | 650.0 |
14 | 12x2.5re | 20.0 | 288.0 | 730.0 |
14 | 14x2.5re | 21.0 | 336.0 | 820.0 |
14 | 16x2.5re | 22.0 | 384.0 | 930.0 |
14 | 19x2.5re | 23.0 | 456.0 | 1000.0 |
14 | 21x2.5re | 24.0 | 504.0 | 1050.0 |
14 | 24x2.5re | 26.0 | 576.0 | 1120.0 |
14 | 30x2.5re | 28.0 | 720.0 | 1300.0 |
14 | 40x2.5re | 30.0 | 960.0 | 1700.0 |
14 | 52x2.5re | 36.0 | 1248.0 | 2300.0 |
14 | 61x2.5re | 38.0 | 1464.0 | 2600.0 |
14 | 7x4re | 19.0 | 269.0 | 620.0 |
14 | 7x6re | 21.0 | 403.0 | 860.0 |
