Silicone rubber cable models: YGC, YGCR, YGCP, YGC22, JGG, JGGR, JGGP, JHXG. This product is suitable for power transmission lines for fixed installations or connecting cables for mobile electrical appliances with an AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gas, and waterproof. The cable structure is soft, easy to lay, stable electrical performance in high temperature (alpine) environment, outstanding anti-aging performance and long service life. It is widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.

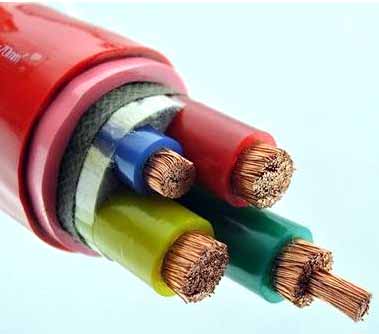

Silicone rubber power cable
Silicon rubber power cable executive standard: flame-retardant and fire-resistance characteristic test according to GB12666-90
Use characteristics of silicone rubber power cable:
1. AC rated voltage: U0/U 0.6/1KV
Maximum working temperature: 180℃
The lowest ambient temperature: fixed laying -60℃
2. The cable installation temperature should not be lower than -25℃.
3. Allowable bending radius of the cable: the minimum cable is 10 times the outer diameter of the cable


Basic model and name of silicone rubber power cable:
model
product name

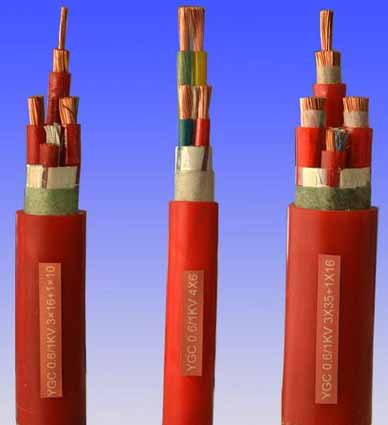

YGC
Silicone rubber insulated and sheathed power cable
YGCR
Mobile power flexible cable with silicone rubber insulation sheath
YGCP
Silicone rubber insulated and sheathed copper braided shielded power cable
YGC22
Silicone rubber insulated and sheathed steel tape armored power cable
JGG
Installation line of silicone rubber insulating rubber sheath
JGGR
Flexible installation cords for the movement of silicone rubber insulated silicon sheath
JGGP
Copper braided shielded installation wire with silicone rubber insulation sheath
JHXG
Silicone rubber insulated motor lead wires
Remarks: ZR is added before the flame-retardant silicone rubber cable model, and the copper wire in the conductor core can be tinned.

Code name and meaning of silicon rubber power cable:
Codename
Code meaning
Y-series code mobile flexible cable
G- Silicone rubber
C-Heavy
22- Steel tape armor
P- Copper braided shield
R- Stranded conductor
J- Motor lead wire

Main technical indicators of silicone rubber power cable
1. The R-type DC resistance of the finished cable conductor meets the requirements of GB3956. Refer to Appendix A Table 1 and Table 2.
2. The insulation resistance is not less than 100MΩ/KM at 20℃
3. The finished cable does not break down when subjected to AC 50HZ3.5KV/5min voltage test.
