The full name of RVV wire: copper core PVC insulated PVC sheathed flexible wire, also known as light PVC sheathed cord, commonly known as soft sheathed wire, is a kind of sheathed cable. Mainly used in power lines, control lines and signal transmission lines for electrical appliances, meters, electronic equipment and automation devices. Specifically, it can be used in anti-theft alarm systems, intercom systems in buildings, etc.

Definition of RVV cable
The rated voltage is 300V/500V, and the number of cores ranges from 2 cores to 24 cores according to the national standard. Two or more cores are twisted into a cable, and the outer stranding direction is right. It is widely used in the control installation of instruments, meters, building intercom, monitoring and monitoring.

The meaning of the letters of the RVV cable
The letter R stands for flexible cord
The letter V stands for insulator polyvinyl chloride (PVC)
rvv wire is the most commonly used wire for weak current systems. The number of core wires is variable, two or more, and there is a PVC sheath on the outside, and there is no special requirement for the arrangement of the core wires.

The role of RVV sheath
For example: rvv 2*0.5 means 2 wires of 0.5 square millimeters plus a layer of outer sheath. The role of the sheath is
1. Protect the inner sheath of the cable from mechanical damage and chemical corrosion;
2. Enhance the mechanical strength of the cable.
Inspection requirements
RVV refers to the multi-strand copper core flexible wire, the logo on the external line, the thickness of the skin layer and the core. The skin layer is generally a polychloride material. The copper core is 19 strands twisted. The specifications are generally 1, 1.5, 2.5 square millimeters. Looking at the length of the line, the national standard line is 95-100 meters, and the non-standard line is about 90 meters.

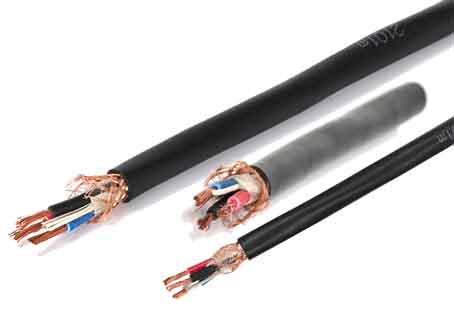

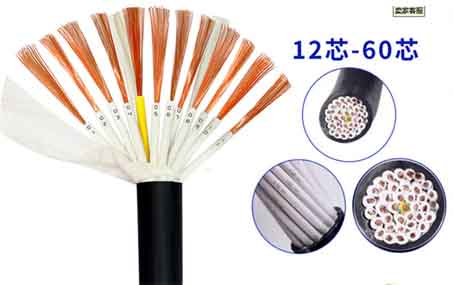

Product display of RVV cable
Copper core PVC insulated PVC sheathed flexible wires and cables.
Farrow Cable 227IEC53(RVV).
Farrow Cable H05VV-F.

Product performance of RVV cable
Product name: RVV cable, RVV wire and cable
Rated voltage: 300V/500V.
Conductor: Multi-stranded copper conductor, in line with GB/T 3956 category 5 (equivalent to IEC60228.5).
Insulation: Polyvinyl chloride compound (PVC).
Sheath: flexible polyvinyl chloride compound (PVC), gray (RAL7001).
Core identification: ≤5 cores, colored cores; black cores, white numbers, yellow and green ground wires.
Number of cores: 2-5 cores, 7-36 cores (products out of the CCC catalog, no CCC certification).
Cross-sectional area: 0.75-2.5mm², 0.5, 2.5-35mm² (products out of the CCC catalog, no CCC certification).
Test voltage: 2000V, 5min.
Insulation resistance: >200M ohm×KM.
Operating temperature: -30~ +70℃.
Bending radius: 15× outer diameter of cable.
Flame retardant properties: IEC 60 332.1.
Reference standards: GB 5023, IEC60227, HD VDE21.5 S3.
Packing specifications: 100m, 500m, 1000m.


Cable application
RVV cables are mainly used in flexible use places such as medium and light mobile electrical appliances, instrumentation, household appliances, power lighting and so on. It can transmit control signals and power signals, and it is also suitable for laying in bridges and hoses. At the same time, this product has obtained CCC and CE, UL mark certification, and meets the requirements of HD (EU harmonized standards). It can be applied not only to the American market, but also to the European market. According to the HD standard, the cable model is H05VV-F.

Number of cores
2×0.50, 3×0.50, 4×0.50, 5×0.50, 6×0.50, 7×0.50, 8×0.50, 10×0.50, 12×0.50, 18×0.50, 25×0.50, 36×0.50.
2×0.75, 3×0.75, 4×0.75, 5×0.75, 6×0.75, 7×0.75, 8×0.75, 10×0.75, 12×0.75, 18×0.75, 25×0.75, 36×0.75.
2×1.0, 3×1.0, 4×1.0, 5×1.0, 6×1.0, 7×1.0, 8×1.0, 10×1.0, 12×1.0, 18×1.0, 25×1.0, 36×1.0.
2×1.5, 3×1.5, 4×1.5, 5×1.5, 6×1.5, 7×1.5, 8×1.5, 10×1.5, 12×1.5, 18×1.5, 25×1.5, 36×1.5.
2×2.5, 3×2.5, 4×2.5, 5×2.5, 6×2.5, 7×2.5, 8×2.5, 10×2.5, 12×2.5, 18×2.5, 25×2.5, 36×2.5.
2×4.0, 3×4.0, 4×4.0, 5×4.0, 7×4.0.
2×6.0, 3×6.0, 4×6.0, 5×6.0, 7×6.0.
2×10.0, 3×10.0, 4×10.0, 5×10.0.
3×16.0, 4×16.0, 5×16.0.
4×25.0, 5×25.0.
4×36.0, 5×36.0.
Notes:
① There is also a larger rated voltage 450/750V, 600/1000V RVV cable.
② There are also multi-core wires in different colors.
③ Other special places use RVV cable products (high and low temperature resistance, corrosion resistance, cutting resistance, etc.).

RVV technical parameters

Number of cores×standard cross section mm	specification	Insulation thickness rating mm	Sheath thickness specified value mm	Conductor resistance Ω/km at 20℃ is not more than
				Copper core	Galvanized copper core
2×0.5	16/0.20	0.5	0.6	39.0	40.1
2X0.75	24/0.20	0.6	0.8	26.0	26.7
2X1	32/0.20	0.6	0.8	19.5	20.0
2X1.5	30/0.25	0.7	0.8	13.3	13.7
2X2.5	49/0.25	0.8	1.0	7.98	8.21
3×0.5	16/0.20	0.6	0.6	39.0	40.1
3X0.75	24/0.20	0.6	0.8	26.0	26.7
3X1	32/0.20	0.6	0.8	19.5	20.0
3X1.5	30/0.25	0.7	0.9	13.3	13.7
3X2.5	49/0.25	0.8	1.1	7.98	8.21
4X0.75	24/0.20	0.6	0.8	26.0	26.7
4X1	32/0.20	0.6	0.9	19.5	20.0
4X1.5	30/0.25	0.7	1.0	13.3	13.7
4X2.5	49/0.25	0.8	1.1	7.98	8.21
5X0.75	24/0.20	0.6	0.9	26.0	26.7
5X1	32/0.20	0.6	0.9	19.5	20.0
5X1.5	30/0.25	0.7	1.1	13.3	13.7
5X2.5	49/0.25	0.8	1.2	7.98	8.21
