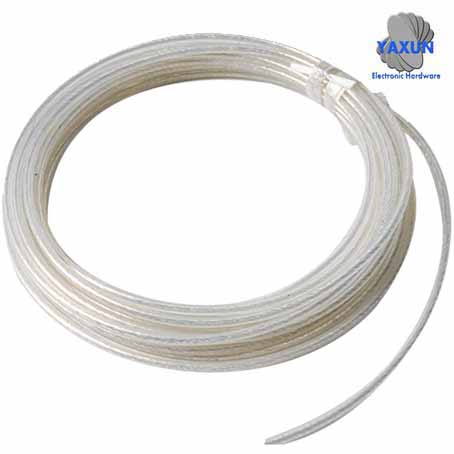

Silver-Plated High Temperature Wire
Silver-plated high temperature wire is a kind of power wire, which has excellent corrosion resistance and oil resistance. In the electronics industry, it can be used for temperature compensation wires, low temperature resistant wires, etc.
Executive standard: Q/IRMV1－2008
Product Features
1. Rated voltage: 600V
2. Working temperature: -80～+250℃, can withstand 350℃ in a short time
3. Conductor: solid core or stranded silver-plated, nickel-plated copper wire or pure nickel wire
4. Insulation: PTFE Teflon

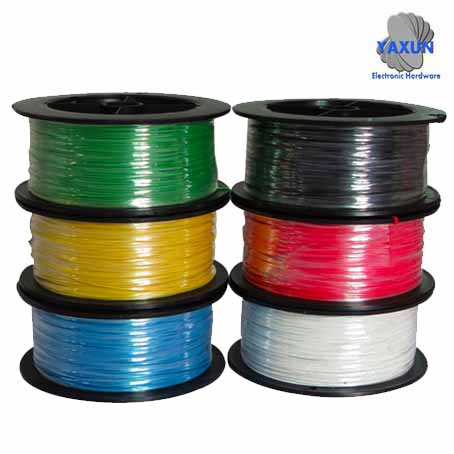

5. Color: red/yellow/blue/white/black/yellow-green/brown, etc.
Has excellent corrosion resistance, resistance to oil, strong acid, strong alkali, strong oxidant, etc.; It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent flame resistance, aging resistance and long service life.
In the electronics industry, it can be used for temperature compensation wires, low temperature resistant wires, high temperature heating wires, aging resistant wires and flame retardant wires; In the household appliance industry, it can be used for internal wiring of air conditioners, microwave ovens, electronic disinfection cabinets, electric rice castles, electronic hot water bottles, electric heaters, electric ovens, electric frying pans, lamps and lanterns.
Basic Information
Product model: AFT250Executive standard: Q/IRMV1－2008
Product Features
1. Rated voltage: 600V
2. Working temperature: -80～+250℃, can withstand 350℃ in a short time
3. Conductor: solid core or stranded silver-plated, nickel-plated copper wire or pure nickel wire
4. Insulation: PTFE Teflon
5. Color: red/yellow/blue/white/black/yellow-green/brown, etc.
Features and uses
Has excellent corrosion resistance, resistance to oil, strong acid, strong alkali, strong oxidant, etc.; It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent flame resistance, aging resistance and long service life.In the electronics industry, it can be used for temperature compensation wires, low temperature resistant wires, high temperature heating wires, aging resistant wires and flame retardant wires; In the household appliance industry, it can be used for internal wiring of air conditioners, microwave ovens, electronic disinfection cabinets, electric rice castles, electronic hot water bottles, electric heaters, electric ovens, electric frying pans, lamps and lanterns.
Specifications and parameters
|
Nominal cross section
（mm）
|
Conductor structure Number of wires/wire diameter (mm) |
Insulation thickness
（mm）
|
Average outer diameter
（mm）
|
DC resistance of conductor at 20 ℃
（Ω/km）
|
Package length
（m）
|
|
0.05
|
1 × 0.25
|
0.20
|
0.65
|
376.29
|
500
|
|
0.07
|
1 × 0.30
|
0.20
|
0.70
|
245.0
|
500
|
|
0.12
|
1 × 0.40
|
0.225
|
0.85
|
144.1
|
500
|
|
0.16
|
1 × 0.45
|
0.25
|
0.95
|
126.0
|
500
|
|
0.20
|
1 × 0.50
|
0.30
|
1.10
|
83.5
|
500
|
|
0.08
|
7 × 0.12
|
0.25
|
0.86
|
227
|
500
|
|
0.15
|
7 × 0.16
|
0.25
|
0.98
|
126
|
500
|
|
0.20
|
7 × 0.20
|
0.25
|
1.10
|
83.5
|
500
|
|
0.35
|
19 × 0.16
|
0.30
|
1.40
|
49.5
|
200
|
|
0.50
|
19 × 0.18
|
0.35
|
1.60
|
36.7
|
200
|
|
0.75
|
19 × 0.23
|
0.35
|
1.85
|
22.7
|
200
|
|
1
|
19 × 0.26
|
0.35
|
2.00
|
19.0
|
200
|
|
1.2
|
19 × 0.28
|
0.40
|
2.20
|
15.3
|
200
|
|
1.5
|
19 × 0.32
|
0.40
|
2.40
|
11.7
|
200
|
|
2
|
19 × 0.37
|
0.45
|
2.75
|
9.45
|
100
|
|
2.5
|
19 × 0.41
|
0.55
|
3.15
|
6.86
|
100
|
|
4
|
37 × 0.37
|
0.50
|
3.58
|
4.51
|
100
|
|
6
|
37 × 0.45
|
0.50
|
4.15
|
3.05
|
100
|
