Supplier of High Temperature Silicone Rubber Cables
High-temperature silicone rubber ( YGC ) wires and cables are suitable for fixed laying power transmission lines or connecting cables for mobile electrical appliances with AC rated voltages of 0.6/1KV and below. It has the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gas, and waterproof. The cable structure is soft, easy to lay, stable electrical performance in high temperature (alpine) environment, outstanding anti-aging performance and long service life. It is widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.

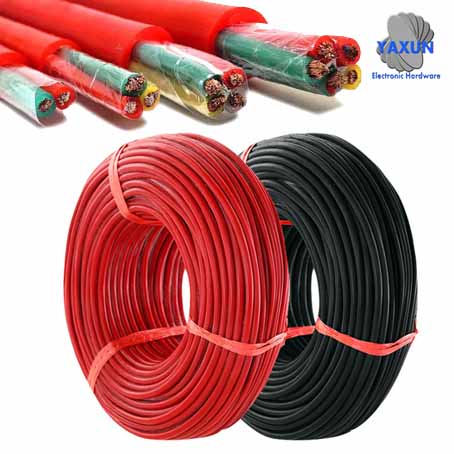

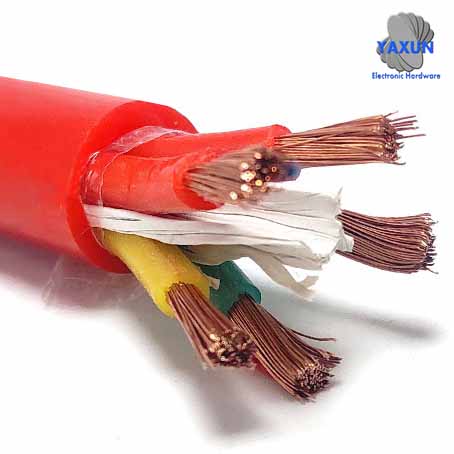

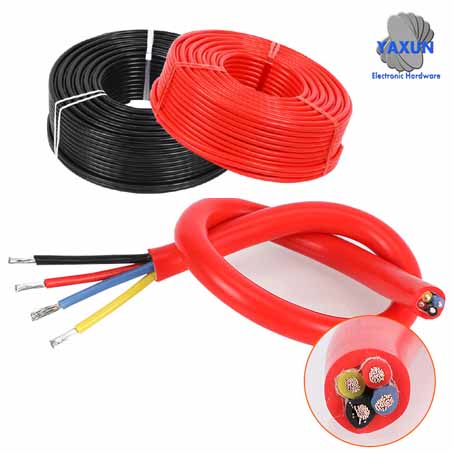

Silicone rubber power cable
Silicon rubber power cable executive standard: flame retardant and fire-resistant characteristic test according to GB12666-90 requirementsThe use characteristics of silicone rubber power cable:
1. AC rated voltage: U0/U 0.6/1KV
Maximum working temperature: 180℃
The lowest ambient temperature: fixed laying -60℃
2. The cable installation temperature should not be lower than -25℃.
3. Allowable bending radius of the cable: the minimum cable is 10 times the outer diameter of the cable
4. Working temperature: -60～+200℃
5. Conductor: stranded tinned copper wire
6. Insulation: Silicone rubber
7. Sheath: Silicone rubber
8. Color: red/yellow/blue/white/black/yellow-green/brown/green, etc.
Basic model and name of silicone rubber power cable: Table 1
| model | product name | Remark |
| YGC | Silicone rubber insulated rubber sheathed power cable |
Remarks: For flame-retardant silicone rubber cables, add ZR before the model number. The copper wire in the conductor core can be tinned. Code name and meaning of silicone rubber power cable: Table 2 Codename Code meaning Y- Series code mobile flexible cable G- Silicone rubber C - Heavy 22 - Steel tape armor P - Copper braided shield R - Stranded conductor J - Motor lead wire |
| YGCR | Flexible power cable with rubber sheath for mobile | |
| YGCP | Silicone rubber sheathed copper braid shielded power cable | |
| YGC22 | Silicone rubber sheathed armored power cable | |
| JGG | Installation line for silicone rubber sheath | |
| JGGR | Mobile installation cord for silicone rubber sheath | |
| JGGP | Silicone rubber sheathed copper braided shielded installation wire | |
| JHXG | Silicone rubber insulated motor lead wires |
use
Silicone rubber cables are widely used in high-temperature environments such as lighting fixtures, household appliances, electric heating appliances, instrumentation, motor lead wires, and electronics, lamps, and gas appliances. It is suitable for the long-term allowable working temperature of the cable to be used within the ambient temperature range of +180℃~-60℃. It is used to connect electrical appliances between mobile electrical appliances in high-temperature environments such as power generation, metallurgy, and chemical industries. Such as: electronic equipment, heavy industry machinery, electrical installations, industrial machines, microwave ovens, fax machines, printers, copiers, scanners and other internal connection lines. High-temperature environments such as instrumentation, motor lead wires and burning appliances.Specification structure
|
Number of cores×section
（mm）
|
Conductor structure Number/wire diameter (mm) |
Insulation thickness
（ mm ）
|
Insulation outer diameter
（ mm ）
|
Sheath thickness
（ mm ）
|
Average outer diameter
（ mm ）
|
DC resistance of conductor at 20 ℃
（Ω/km）
|
|
2 × 0.2
|
7/0.20
|
0.40
|
1.40
|
0.90
|
4.60
|
94
|
|
3 × 0.2
|
7/0.20
|
0.40
|
1.40
|
0.90
|
4.80
|
94
|
|
4 × 0.2
|
7/0.20
|
0.40
|
1.40
|
0.90
|
5.20
|
94
|
|
5 × 0.2
|
7/0.20
|
0.40
|
1.40
|
1.0
|
5.80
|
94
|
|
2 × 0.3
|
16/0.15
|
0.40
|
1.50
|
0.90
|
4.80
|
71.2
|
|
3 × 0.3
|
16/0.15
|
0.40
|
1.50
|
0.90
|
5.00
|
71.2
|
|
4 × 0.3
|
16/0.15
|
0.40
|
1.50
|
1.0
|
5.60
|
71.2
|
|
5 × 0.3
|
16/0.15
|
0.40
|
1.50
|
1.2
|
6.40
|
71.2
|
|
2 × 0.5
|
28/0.15
|
0.50
|
2.0
|
1.0
|
6.00
|
40.1
|
|
3 × 0.5
|
28/0.15
|
0.50
|
2.0
|
1.20
|
6.80
|
40.1
|
|
4 × 0.5
|
28/0.15
|
0.50
|
2.0
|
1.20
|
7.20
|
40.1
|
|
5 × 0.5
|
28/0.15
|
0.50
|
2.0
|
1.20
|
7.80
|
40.1
|
|
6 × 0.5
|
28/0.15
|
0.50
|
2.0
|
1.30
|
8.60
|
40.1
|
|
7 × 0.5
|
28/0.15
|
0.50
|
2.0
|
1.30
|
8.60
|
40.1
|
|
2 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.20
|
7.20
|
26.7
|
|
3 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.20
|
7.60
|
26.7
|
|
4 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.30
|
8.50
|
26.7
|
|
5 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.50
|
9.50
|
26.7
|
|
6 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.60
|
10.40
|
26.7
|
|
7 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.60
|
10.40
|
26.7
|
|
10 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.70
|
12.60
|
26.7
|
|
12 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.80
|
13.60
|
26.7
|
|
14 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.80
|
14.20
|
26.7
|
|
19 × 0.75
|
24/0.20
|
0.60
|
2.40
|
1.80
|
15.60
|
26.7
|
|
2 × 1
|
32/0.20
|
0.60
|
2.60
|
1.20
|
7.60
|
20.0
|
|
3 × 1
|
32/0.20
|
0.60
|
2.60
|
1.2
|
7.80
|
20.0
|
|
4 × 1
|
32/0.20
|
0.60
|
2.60
|
1.3
|
8.80
|
20.0
|
|
5 × 1
|
32/0.20
|
0.60
|
2.60
|
1.50
|
10.0
|
20.0
|
|
6 × 1
|
32/0.20
|
0.60
|
2.60
|
1.60
|
11.0
|
20.0
|
|
7 × 1
|
32/0.20
|
0.60
|
2.60
|
1.80
|
11.6
|
20.0
|
|
10 × 1
|
32/0.20
|
0.60
|
2.60
|
1.80
|
13.4
|
20.0
|
|
12 × 1
|
32/0.20
|
0.60
|
2.60
|
1.80
|
14.5
|
20.0
|
|
14 × 1
|
32/0.20
|
0.60
|
2.60
|
1.80
|
15.2
|
20.0
|
|
19 × 1
|
32/0.20
|
0.60
|
2.60
|
1.80
|
16.6
|
20.0
|
|
2 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.30
|
8.50
|
13.7
|
|
3 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.30
|
8.50
|
13.7
|
|
4 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.40
|
9.50
|
13.7
|
|
5 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.50
|
10.6
|
13.7
|
|
6 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.8
|
12.0
|
13.7
|
|
7 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.80
|
12.0
|
13.7
|
|
10 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.80
|
14.2
|
13.7
|
|
12 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.80
|
15.2
|
13.7
|
|
14 × 1.5
|
48/0.20
|
0.60
|
2.80
|
1.80
|
16.0
|
13.7
|
|
19 × 1.5
|
48/0.20
|
0.60
|
2.80
|
2.0
|
18.0
|
13.7
|
|
20 × 1.5
|
48/0.20
|
0.60
|
2.80
|
2.0
|
18.5
|
13.7
|
|
24 × 1.5
|
48/0.20
|
0.60
|
2.80
|
2.0
|
21.2
|
13.7
|
|
37 × 1.5
|
48/0.20
|
0.60
|
2.80
|
2.4
|
24.5
|
13.7
|
|
2 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.5
|
10.0
|
8.21
|
|
3 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.5
|
10.5
|
8.21
|
|
4 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.7
|
12.0
|
8.21
|
|
5 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.8
|
13.2
|
8.21
|
|
6 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.8
|
14.2
|
8.21
|
|
7 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.8
|
14.2
|
8.21
|
|
10 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.8
|
16.8
|
8.21
|
|
12 × 2.5
|
49/0.25
|
0.70
|
3.50
|
1.8
|
18.2
|
8.21
|
|
14 × 2.5
|
49/0.25
|
0.70
|
3.50
|
2.0
|
19.5
|
8.21
|
|
19 × 2.5
|
49/0.25
|
0.70
|
3.50
|
2.2
|
22.0
|
8.21
|
|
24 × 2.5
|
49/0.25
|
0.70
|
3.50
|
2.4
|
26.4
|
8.21
|
|
37 × 2.5
|
49/0.25
|
0.70
|
3.50
|
2.5
|
29.5
|
8.21
|
