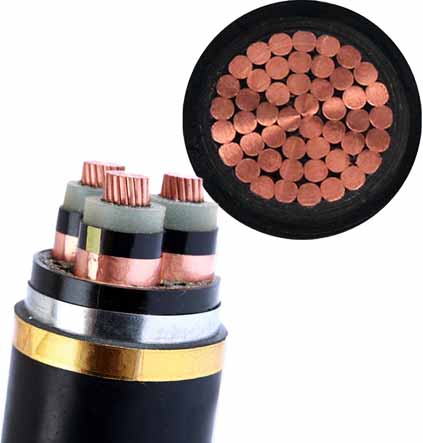

What YJV cable?
YJ ---- Cross-linked polyethylene insulation
V ---- PVC sheath
The name of the YJV cable model is: XLPE insulated and PVC sheathed power cable
XLPE insulated power cables have excellent thermo-mechanical properties. Excellent electrical properties and chemical resistance. It also has the advantages of simple structure, light weight, and no drop limit for laying. It is a novel cable widely used in urban power grids, mines and factories.
Cable insulation-cross-linked polyethylene: It is a cross-linked polyethylene that uses chemical and physical methods to convert linear molecular structure polyethylene into a three-dimensional network structure. Thereby greatly improving the thermomechanical properties of polyethylene, thereby maintaining excellent electrical properties.
The maximum rated working temperature of XLPE insulated power cable conductor is 90℃. The working temperature is higher than that of PVC insulated and polyethylene insulated cables, so the current carrying capacity of the cable is further improved.

YJV cable executive standard
GB/T12706.2-2008: rated voltage 1KV (Um=1.2KV) to 35KV (Um=1.2KV) extruded insulated power cables and accessories
IEC60502-2:2005: rated voltage 1~30KV extruded insulated power cable and accessories
GB/T10438-2004: "Crosslinked PVC insulated wires and cables with rated voltages below 450/750"

YJV cable use requirements
Operating temperature
Maximum rated working temperature of conductor 90℃
Conductor short circuit temperature
The maximum temperature shall not exceed 250℃, and the maximum time shall not exceed 5 seconds.

Installation and laying temperature of YJV cable
Cable installation temperature is not lower than 0℃
Laying in the air: ambient temperature 40℃
Laying in soil: ambient temperature 25℃

specification

model Copper core	model Aluminum core	name	Scope of application
YJV YJY	YJLV YJLY	Copper core or aluminum core cross-linked, polyethylene insulated / PVC sheathed power cable Copper core or aluminum core cross-linked, polyethylene insulated / polyethylene sheathed power cable	Laying indoors, in tunnels, cable trenches and pipelines, or buried in loose soil. The cable can withstand a certain amount of laying traction, but cannot withstand mechanical external forces
YJV22 YJY23	YJLV22 YJLY23	Copper core or aluminum core cross-linked poly, vinyl insulated steel tape armored / PVC sheathed power cable Copper core or aluminum core cross-linked poly, vinyl insulated steel tape armored / polyethylene sheathed power cable	It is suitable for indoor, tunnel, cable trench and underground direct-buried laying. The cable can withstand external mechanical forces, but cannot withstand large pulling forces
YJV32 YJY33	YJLV32 YJLY33	Copper core or aluminum core cross-linked poly, vinyl insulated thin steel wire armored / PVC sheathed power cable Copper core or aluminum core cross-linked poly, vinyl insulated fine steel wire armored poly/vinyl sheathed power cable	Suitable for areas with high drop. Can withstand mechanical external forces and considerable pulling forces
YJV42 YJY43	YJLV42 YJLY43	Copper core or aluminum core cross-linked poly, vinyl insulated thick steel wire armored / PVC sheathed power cable Copper core or aluminum core cross-linked poly, vinyl insulated thick steel wire armored / polyethylene sheathed power cable	Suitable for areas with high drop. Can withstand mechanical external forces and considerable pulling forces
