550°C /1000°C Mica Fiberglass Wire
Mica tape is a high-performance mica insulation product with excellent high temperature resistance and combustion resistance. The powder mica tape has good flexibility under normal conditions and is suitable for the main fire-resistant insulation layer in various fire-resistant cables. There is basically no volatilization of harmful smoke when exposed to an open flame, so the cable is not only environmentally friendly and effective, but also safe.
The present invention relates to the technical field of wire preparation, in particular to a method for producing mica wires, which include conductors. A mica tape is tightly wrapped around the conductor to form an insulator. The insulator is covered with an outer protective layer; The mica tape is spirally overlapped and wound on the conductor, and any adjacent overlap is coated with a refractory insulating coating; The width of any adjacent overlaps accounts for 3040% of the width of the mica tape. The mica wire provided by the present invention is resistant to high temperatures, can maintain extremely high safety performance in harsh working environments, and has a relatively high service life.
Color: tan, red, white, yellow, green, brown, black, blue, pink, etc.
Size: 24AWG, 22AWG, 20AWG, 18AWG, 16AWG, 14AWG, 12AWG, 10AWG, 8AWG, 6AWG, 4AWG, 2AWG, 1AWG, 1 / 0AWG, 2 / 0AWG, 3 / 0AWG, 4 / 0AWG, 250kcmil, 300kcmil, 350kcmil, 400kcmil, 500kcmil
Packing: 305M/roll
The present invention relates to the technical field of wire preparation, in particular to a method for producing mica wires, which include conductors. A mica tape is tightly wrapped around the conductor to form an insulator. The insulator is covered with an outer protective layer; The mica tape is spirally overlapped and wound on the conductor, and any adjacent overlap is coated with a refractory insulating coating; The width of any adjacent overlaps accounts for 3040% of the width of the mica tape. The mica wire provided by the present invention is resistant to high temperatures, can maintain extremely high safety performance in harsh working environments, and has a relatively high service life.
Color: tan, red, white, yellow, green, brown, black, blue, pink, etc.
Size: 24AWG, 22AWG, 20AWG, 18AWG, 16AWG, 14AWG, 12AWG, 10AWG, 8AWG, 6AWG, 4AWG, 2AWG, 1AWG, 1 / 0AWG, 2 / 0AWG, 3 / 0AWG, 4 / 0AWG, 250kcmil, 300kcmil, 350kcmil, 400kcmil, 500kcmil
Packing: 305M/roll
550°C 600V UL5562 Mica Fiberglass Braided High Temperature Wire and Cable | |||
describe | Feature | Structure | Product Image |
Name: High temperature resistant wire Model: AWM5562 Size: 26~4AWG |
Rated voltage: 600V Rated temperature: 550℃ |
Nickel-plated copper wire Insulation: Mica winding, glass fiber braid, high temperature coating Specification: UL758, UL1581 |
550°C 300V UL5561 Mica Fiberglass Braided High Temperature Cable | |||
describe | Feature | Structure | Product Image |
Name: High temperature resistant cable Model: AWM5561 Size: 24~4AWG |
Rated voltage: 300V Rated temperature: 550℃ |
Conductor: nickel-plated wire Insulation: Mica wrapping, glass fiber yarn weaving, high temperature coating Specification: UL758, UL1581 |
450°C 600V UL5476 Mica Fiberglass Braided High Temperature Cable | |||
describe | Feature | Structure | Product Image |
Name: High temperature resistant cable Model: AWM5476 Size: 26~4 AWG |
Rated voltage: 600V Rated temperature: 450℃ |
Nickel-plated wire, pure nickel wire Insulation: Mica wrapped Outer: high temperature coated glass fiber |
450°C 600V UL5107 mica fiberglass braided cable | |||
describe | Feature | Structure | Product Image |
Name: High temperature resistant cable Model: AWM5107 Size: 26~4AWG |
Rated voltage: 600V Rated temperature: 450℃ |
Nickel-plated wire, pure nickel wire Insulation: Mica wrapped, glass fiber braid, high temperature coating Specification: UL758, UL1581 |
750°C 600V Mica Fiberglass Braided High Temperature Cable | |||
describe | Feature | Structure | Product Image |
Name: High temperature resistant wire Model: GW04-750 Size: 18~8AWG |
Rated voltage: 600V Rated temperature: 750℃ |
Structure: nickel-plated wire, mica tape, glass fiber braid Insulation: Mica wrapped Conductor: Stranded nickel-plated wire Outer protection: glass fiber braided |
1000°C 600V mica fiberglass braided high temperature cable | |||
describe | Feature | Structure | Product Image |
High temperature cable Model: GW04-1000 Size: 18~8AWG |
Rated voltage: 600V Rated temperature: 1000℃ |

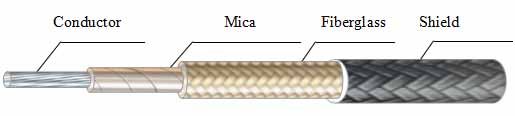

Pure nickel wire Insulation: Mica wrapped Outer protection: glass fiber yarn weaving, high temperature coating Shield: stainless steel wire |
