Silicone high temperature cables have excellent high temperature and low temperature resistance. It has excellent high pressure resistance, aging resistance, high temperature resistance, acid and alkali resistance, and long service life. Description of silicone wire: The insulating layer is made of silicone rubber. The colors are: white, red, black, blue, green, yellow, translucent, etc. Long service life, easy to be soft and easy to install.
It is widely used in high temperature wire environment such as lighting fixtures, household appliances, electric heating appliances, instrumentation, motor lead wires and electronics, lamps, dyeing tools, etc.

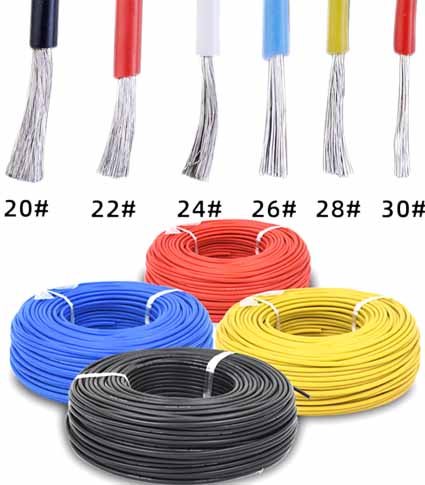

3239 silicone wire
Product Features:
1. Rated voltage: 3KV
2. Working temperature: -65～+200℃
3. Conductor: Stranded tinned copper wire
4. Insulation: Dimethylsiloxane
5. Color: red / black / white / yellow / green / blue / brown / pink, etc.

Characteristics of silicone wire
The rated temperature of the silicone wire is relatively high, which can basically reach 150℃~300℃. The rated voltage is around 600V. Silicone rubber is used as the insulation material, and the insulation thickness is uniform, which is convenient for peeling and cutting. Take UL3239 as an example, the rated temperature is 200℃, and the rated voltage is 3KV-60KV DC voltage;
◆ Standard: UL348931-1, RoHS
◆ The conductor uses 30-16AWG single or stranded bare copper or tinned copper wire
◆ Silicone rubber insulation
◆ Uniform insulation thickness, convenient for peeling and cutting
◆ Pass FT2 horizontal combustion test application:
Silicone cable is suitable for long-term allowable working temperature of +180℃ or below, allowing it to be used in an ambient temperature range of not lower than -60℃. Silicone cable is used to connect electrical appliances between mobile electrical appliances in high-temperature environments such as power generation, metallurgy, and chemical industries. For example, wiring in high-temperature places such as household appliances, lighting fixtures, electronic equipment, electric heating products, heavy industrial machinery, electric power installations, industrial machines, and electric heating products. And used in microwave ovens, fax machines, printers, copiers, scanners and other machines for internal connections, instruments and meters, motor lead wires, electronics, gas appliances and other high-temperature environments.

specification （AWG）	The structure of the conductor Number of threads/line warp （MM）	Temperature resistance (Celsius °)	Withstand voltage （KV）	OD （MM）	Packing/length （M）
16	52/0.18	200°	3KV	2.5	305
18	30/0.18	200°	3KV	2.17	305
20	20/0.18	200°	3KV	1.91	305
22	12/0.18	200°	3KV	1.76	305
24	11/0.16	200°	3KV	1.6	305
26	7/0.16	200°	3KV	1.5	305
28	7/0.12	200°	3KV	1.37	305
30	7/0.10	200°	3KV	1.0	305
