UL Certified PVC Electronic Wire

UL electronic wire is the general name of the electronic wire that has passed UL certification, and it is the electronic wire that meets the environmental protection requirements under the EU ROHS standard. Generally used in weak current projects, such as internal wiring of electronic and electrical equipment, etc.

Classification of electronic wires:
80℃ 300V UL2464 PVC cable,
80℃ 300V UL2095 PVC cable,
105℃ 300V UL1015 PVC wire,
105℃ 300V UL1672 PVC wire,
105℃ 300V UL1569 PVC wire,
80℃ 300V UL1007 PVC wire

Color: red, white, yellow, green, brown, black, blue, pink, etc.
Size: 2*26AWG, 2*24AWG, 2*22AWG, 2*20AWG, 2*18AWG, 2*16AWG, 2*14AWG, 3*26AWG, 3*24AWG, 3*22AWG, 3*20AWG, 3*18AWG, 3*16AWG, 3*14AWG, 4*26AWG, 4*24AWG, 4*22AWG, 4*20AWG, 4*18AWG, 4*16AWG, 4*14AWG
Packing: 305M/roll

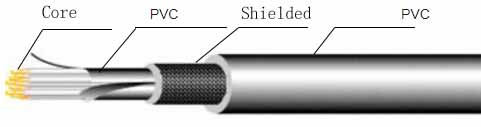

80℃ 300V UL2464 polyvinyl chloride cable
describe    Feature Structure Product Image
Name: Multi-core PVC wire
Model: AWM 2464
Size: 2*26~4*14AWG
Rated voltage: 300V
Rated temperature: 80℃
Conductor: tinned copper
Insulation: Extruded PVC
Shield: copper wire, tinned wire
External protection: extruded PVC
 UL2464 polyvinyl chloride cable

80℃ 300V UL2095 multi-core PVC cable
describe    Feature Structure Product Image
Name: Multi-core PVC wire
Model: AWM 2095
Size: 2*26~4*14AWG
Rated voltage: 300V
Rated temperature: 80℃
Conductor: tinned copper
Insulation: Extruded PVC
Shield: copper wire, tinned wire
Executive standard: UL758, UL1581
 UL2095 mehradriges PVC-Kabel

105℃ 300V UL1015 PVC wire
describe    Feature Structure Product Image


Name: Polyvinyl Chloride Line
Model: AWM 1015
Size: 30~4 / AWG



Rated voltage: 600V
Rated temperature: -60℃ ~+105℃
Conductor: copper, tinned copper
Insulation: PVC
Executive standard: UL758, UL1581
 UL1015 PVC wire

105℃ 300V UL1672 PVC wire
describe    Feature Structure Product Image


Name: PVC wire
Model: AWM 1672
Size: 26~14AWG



Rated voltage: 300V
Rated temperature: 105℃
Conductor: copper/tinned copper
Insulation: Extruded PVC
Meet the standards: UL758, UL1581
 UL1672 PVC wire

105C 300V UL1569 PVC wire
describe    Feature Structure Product Image


Name: PVC wire
Model: AWM 1569
Size: 30~2AWG



Rated voltage: 300V
Rated temperature: -60℃ ~+105℃
Conductor: copper, tinned copper
Insulation: Extruded PVC
Standard: UL758, UL1581
 UL1569 PVC wire

80℃ 300V UL1007 PVC wire
describe    Feature Structure Product Image
Name: PVC wire
Model: AWM 1007
Size: 32~16AWG
Rated voltage: 300V
Rated temperature: -60℃ ~+80℃
Conductor: copper, tinned copper
Insulation: Extruded PVC
Executive standard: UL758, UL1581
  UL1007 PVC wire
