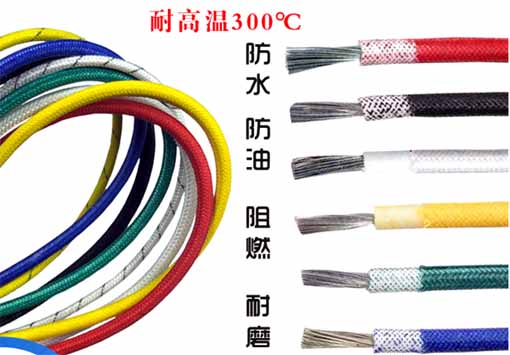

Mica silicone braided wire and cable
Braided silica gel (AGRP) wire, cable for AC rated voltage 0.6 / 1KV and below or mobile electrical power transmission cable connecting a high temperature. The product has the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gas, and waterproof. Cable flexibility structure, easy to radiation, electrical properties and stability at high temperatures (cold) environment, the protruding anti-aging properties, and long service life. It is widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.
Implementation standards for silicone braided wires
Q/HHTZH001.1
The test of flame retardant and fire resistance is carried out in GB12666-90
Use characteristics of silicone braided wire
2. The installation and laying temperature of the cable should not be lower than -25℃.
3. Allowable bending radius of the cable: The minimum cable is 10 times the outer diameter of the cable.

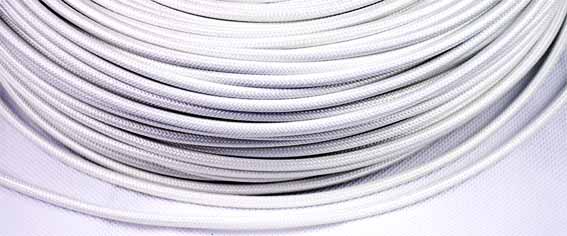

Product description of silicone braided wire
Product specifications: 2.5 square silicone braided wire, which can be customized according to customer requirements
Wire conductor: 50/0.25TS tinned copper wire
Wire square: 2.5mm²
Finished outer diameter: 3.6mm
Insulator: Silicone rubber
Knitting: glass fiber + silicone resin
Outer diameter tolerance: ±0.10mm
Wire color: black, white, red, green, blue, yellow, yellow-green, brown, purple, orange
Product packaging: 305 meters/roll
Nominal cross section (mm2) |
Conductor structure Number/Wire Diameter (mm) |
Insulation thickness (mm) |
Outer diameter control (mm) |
DC resistance of conductor at 20 ℃ (Ω/km) |
Packing/length (m) |
0.5 | 7 × 0.30 | 0.5 | 2.3 ± 0.3 | 40.8 | 200 |
0.75 | 11 × 0.30 | 0.5 | 2.5 ± 0.3 | 24.3 | 200 |
1 | 14 × 0.30 | 0.5 | 2.6 ± 0.3 | 20.0 | 200 |
1.5 | 21 × 0.30 | 0.5 | 2.9 ± 0.3 | 12.6 | 100 |
2 | 28 × 0.30 | 0.6 | 3.3 ± 0.5 | 9.84 | 100 |
2.5 | 35 × 0.30 | 0.6 | 3.6 ± 0.5 | 7.37 | 100 |
4 | 56 × 0.30 | 0.8 | 4.7 ± 0.5 | 4.83 | 100 |
6 | 84 × 0.30 | 0.8 | 5.5 ± 0.5 | 3.26 | 100 |
10 | 84 × 0.40 | 0.8 | 6.6 ± 0.5 | 1.80 | 100 |
16 | 228 × 0.30 | 0.8 | 7.8 ± 0.5 | 1.31 | 100 |
126 × 0.40 | 0.8 | 7.8 ± 0.5 | 1.31 | 100 | |
25 | 196 × 0.40 | 0.8 | 9.5 ± 0.5 | 0.758 | 100 |
361 × 0.30 | 0.8 | 9.5 ± 0.5 | 0.758 | 100 | |
35 | 494 × 0.30 | 1.0 | 11.2 ± 1.0 | 0.548 | 100 |
50 | 396 × 0.40 | 1.2 | 13.2 ± 1.0 | 0.384 | 100 |
703 × 0.30 | 1.2 | 13.2 ± 1.0 | 0.384 | 100 | |
70 | 551 × 0.40 | 1.2 | 15.4 ± 1.0 | 0.289 | 100 |
988 × 0.30 | 1.2 | 15.4 ± 1.0 | 0.289 | 100 | |
95 | 760 × 0.40 | 1.2 | 17.4 ± 1.0 | 0.205 | 100 |
Remarks: According to the agreement between the supplier and the buyer, products of other specifications can be produced. |
